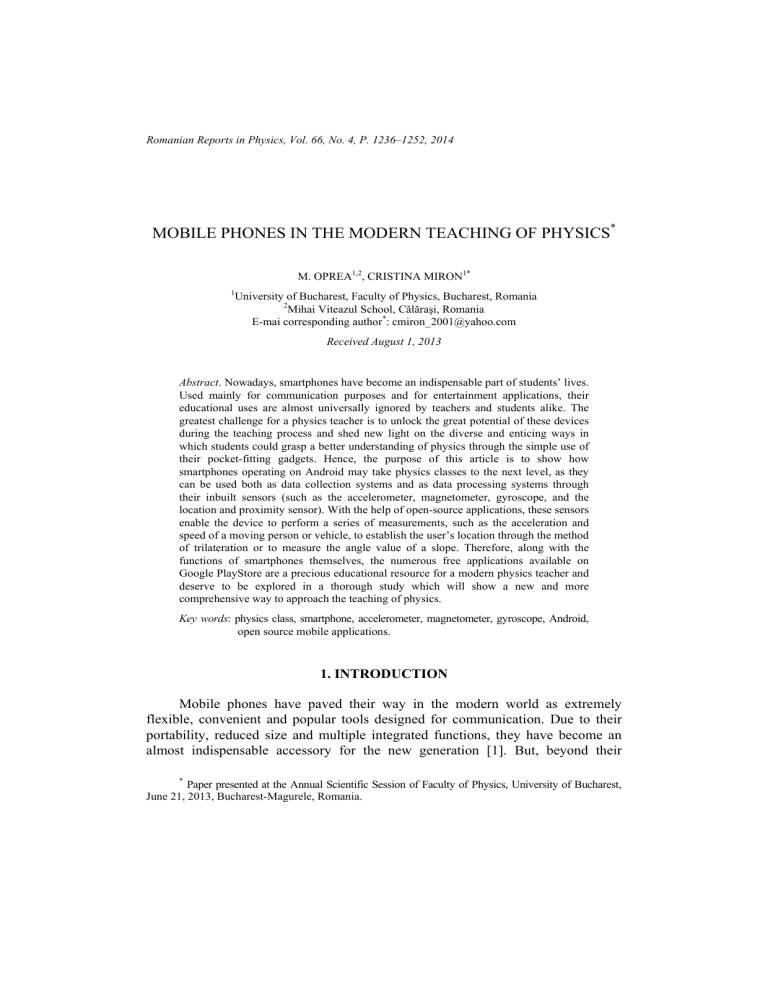

Romanian Reports in Physics, Vol. 66, No. 4, P. 1236–1252, 2014 MOBILE PHONES IN THE MODERN TEACHING OF PHYSICS* M. OPREA1,2, CRISTINA MIRON1* 1 University of Bucharest, Faculty of Physics, Bucharest, Romania 2 Mihai Viteazul School, Călăraşi, Romania E-mai corresponding author*: [email protected] Received August 1, 2013 Abstract. Nowadays, smartphones have become an indispensable part of students’ lives. Used mainly for communication purposes and for entertainment applications, their educational uses are almost universally ignored by teachers and students alike. The greatest challenge for a physics teacher is to unlock the great potential of these devices during the teaching process and shed new light on the diverse and enticing ways in which students could grasp a better understanding of physics through the simple use of their pocket-fitting gadgets. Hence, the purpose of this article is to show how smartphones operating on Android may take physics classes to the next level, as they can be used both as data collection systems and as data processing systems through their inbuilt sensors (such as the accelerometer, magnetometer, gyroscope, and the location and proximity sensor). With the help of open-source applications, these sensors enable the device to perform a series of measurements, such as the acceleration and speed of a moving person or vehicle, to establish the user’s location through the method of trilateration or to measure the angle value of a slope. Therefore, along with the functions of smartphones themselves, the numerous free applications available on Google PlayStore are a precious educational resource for a modern physics teacher and deserve to be explored in a thorough study which will show a new and more comprehensive way to approach the teaching of physics. Key words: physics class, smartphone, accelerometer, magnetometer, gyroscope, Android, open source mobile applications. 1. INTRODUCTION Mobile phones have paved their way in the modern world as extremely flexible, convenient and popular tools designed for communication. Due to their portability, reduced size and multiple integrated functions, they have become an almost indispensable accessory for the new generation [1]. But, beyond their * Paper presented at the Annual Scientific Session of Faculty of Physics, University of Bucharest, June 21, 2013, Bucharest-Magurele, Romania. 2 Mobile phones in the modern teaching of physics 1237 classical uses, mobile phones hold an enormous, yet insufficiently explored potential for the education field. As a series of studies point out they can be an excellent didactic instrument, with state-of-the-art applications in the field of Physics [2–7]. The cable-based or Bluetooth file transfer, the Internet connectivity and the audio and video recording functions are just a few of the basic elements present in classical mobile phones that can be integrated in the didactic process. Unlike those type of phones, smartphones hold, due to their sensors, a much wider array of functions and didactically relevant applications. Having fast processors and large touchscreens, the smartphones have become mobile working platforms on which students can easily study didactic materials and process experimental data. At the same time, through a WiFi connection, they can access a web server or an educational site (a wiki site, for example) on which these materials are kept or they can study the resources stored on an eLearning platform designed for their class, such as Moodle. Most smartphones use the Android operating system, which allows access to Google Play Store, a digital platform where users can download a large variety of applications (apps) to use on their mobile phones. The present study offers a comprehensive picture on the implementation of the free apps which hold a high educational potential in the Physics classes. A class of applications of great importance for the study of Physics uses the phone’s in-built sensors for data acquisition in order to process and interpret it. This aspect turns the smartphone into an indispensable instrument for the modern teaching of Physics. As a series of studies [2–7] point out, a portable device so popular among students can be used to take the didactic process to a whole new level of expression and enhance the research skills and cognitive abilities of its users. 2. THE USE OF THE MOBILE PHONE IN THE PHYSICS CLASS 2.1. DATA ACQUISITION AND PROCESSING EXPERIMENTS OF PHYSICS USING THE MOBILE PHONE’S INTEGRATED SENSORS a) Experiments using the accelerometer. The measurement instruments used in Mechanics experiments require precision and versatility. The precision of angle slope measurements using classical instrumentation is quite low. The mobile phone offers a methodical alternative for the improvement of such measurements. In this respect, the application Angle Meter, which is shown in Fig. 1, measures and displays in real time the angle value of a slope. The periodical recalibration of the mobile device guarantees a good quality of the measurements. 1238 M. Oprea, Cristina Miron 3 Fig. 1 – Angle Meter Application. The colored versions may be accessed at http://www.infim.ro/rrp/. During the lessons “Simple Mechanisms. The Slope”, the smartphone proved its utility through quick and precise measurements of the slope angles used in laboratory works such as: determining the friction coefficient on a slope, shown in Fig. 2, and determining the downward and upward acceleration of objects sliding on those slopes. Fig. 2 – Determination of the friction coefficient on a slope using the smartphone. The colored versions may be accessed at http://www.infim.ro/rrp/. The tabulation of the angle values measured, as well as calculation of their tangents, enabled us to determine, through the relationship µ = tgα, the friction coefficient µ for the following contact surfaces: metal–plastic, rubber–plastic, wood–plastic and plastic–plastic. Determining the location and the height of an object can be easily achieved using an application such as Smart Measure. It uses the phone’s accelerometer to calculate the tilt angle of the device from the vertical axis and determines with a high degree of accuracy, based on trigonometric calculations, the distance values to an object and its height. The principle used for these measurements is rendered in Fig. 3 and Fig. 4. 4 Mobile phones in the modern teaching of physics 1239 Fig. 3 – Measurement scheme of the distance smartphone-object. Fig. 4 – Measurement scheme of the height of the object. The simple trigonometric relationships gz g z1 = g ⋅ cos θ ⇒ θ = arccos 1 gz , (1) 1240 M. Oprea, Cristina Miron tg θ = h h ⇒x= = x tg θ h 1 −1 cos 2 θ 5 h = (2) 1 g z1 gz 2 −1 enable the determination of the distance to an object x= h gz gz 1 (3) 2 −1 as well as its real height H real g =h+H =h+ x z gz 2 2 −1 , (4) where h is the phone’s distance from the ground surface. Fig. 5 – Distance and height measurement on the school premises, using the application Smart Measure. The colored versions may be accessed at http://www.infim.ro/rrp/. For example, when measuring the height of a door and the distance from the door to the observer (Fig. 5a,b), the values obtained with the help of the mobile phone application were similar to the values obtained with classical measurement instruments (tape measure). Moreover, with the help of the phone we measured the projection value gz1=9,47m/s2 of the acceleration of gravity on the vertical axis Oz, when the device was tilted by an angle θ =15° relative to this axis. Introducing this value in the calculation formula of the distance x to the object and of the height Hreal of the object, we obtained values in full accordance with the ones provided by the application Smart Measure. The application is very useful during Mechanics lessons to determine the values of the distance between a reference system and an object, as shown in Fig. 5c,d, when these values are necessary to calculate the speed of this object and the time required to walk a certain distance. 6 Mobile phones in the modern teaching of physics 1241 Another application based on the acceleration sensor is Accelerometer Monitor, which displays both graphically and numerically in real time (at intervals of 20 ms), the projection value of the acceleration of gravity on the three axes of the cartesian coordinate system, as it is shown in Fig. 6. Fig. 6 – Measurements on the school premises using Accelerometer Monitor. The colored versions may be accessed at http://www.infim.ro/rrp/. The values can be optionally recorded in a text file and exported through Bluetooth, cable data or e-mail on another computer to be processed in MS Excel. Using this application we determined the value of the acceleration of gravity during an experiment of free fall of an object from a determined height (h). The selected object was the mobile phone itself. We suspended it vertically from a nylon thread along the Oz axis (Fig. 7). Once the application Accelerometer Monitor was started, the projection values of the acceleration of gravity were displayed on the three catezian axes Ox, Oy, Oz. To attenuate the fall of the phone, a soft material (sponge) was placed at the point of contact with the ground. z SUSPENSION THREAD y Determination of g using the accelerometer of the smartphone x h – free fall height SHOCK ABSORBING MATERIAL Fig. 7 – Determination of g using the accelerometer of the smartphone. The colored versions may be accessed at http://www.infim.ro/rrp/. 1242 M. Oprea, Cristina Miron 7 The distance h between the phone and the ground was measured. We eliminated the suspension thread and the phone moved over the distance h while the application Accelerometer Monitor was running. After the movement stopped, the application was turned off and the data recorded by the sensor was saved in a text file. Its content, which was afterwards visualised with the application Kingsoft Office installed on the phone, was exported on a laptop in order to be analysed. Through the MS Excel analysis of the data from the file we built a graphic containing on the horizontal axis the values of the times when the data was recorded and on the vertical axis the values of the acceleration of gravity corresponding to those moments (Fig. 8). Fig. 8 – Experimental acceleration of gravity values. The colored versions may be accessed at http://www.infim.ro/rrp/. It can be deduced from this graphic that, until the suspension thread is eliminated, the acceleration has a value of 9.8m/s2 (with slight variations) on the Oz axis. After the removal of the thread, during the first tenths of seconds, the accelerometer records a slight drop in the value of g (transitory recording interval) and afterwards goes back to the value of 9.8m/s2 which is specific for a free falling body in the gravitational field of the Earth. This value is maintained until contact with the ground is made. After impact, the sensor records very high variations of acceleration due to the dynamic oscillating regime on the damping platform and stops after a while, going back to the normal value g = 9.8m/s2. The time interval between the phone’s detachment from the suspension thread and the moment of ground impact is in fact the falling time t on the distance h, which, according to the equation of free fall in a gravitational field, allows the calculation of the value of the acceleration of gravity g: g= 2h t2 In our experiment, h = 0.65m, t = 0.36s and the resulting acceleration: g = 10.03±0,1m/s2. 8 Mobile phones in the modern teaching of physics 1243 This value is relevant enough considering the experiment has a didactic purpose. In the graphic (Fig. 8) are indicated quantitative aspects of the experiment concerning the measurement of the acceleration of gravity, but also important clues about the temporal intervals of free fall, transitory regime and of the return to the normal values of g. For comparative reasons, to validate the results of the accuracy of the previous experiment, we performed another one, designed to determine the acceleration of gravity. For this puropose, we used a laser emitter, a system of mirros, a laser detector (fotoresistor), a plastic ball, a speaker-based acoustic alarm, a microphone and a laptop with a sound editing software. The block diagram of the experiment is rendered in the image below (Fig. 9). Fig. 9 – Experimental scheme. The colored versions may be accessed at http://www.infim.ro/rrp/. The laser has 10mW power and emits in the red spectrum of the optic domain (λ = 650 nm). After being reflected on the two mirrors, the laser beam reaches a photoresistor connected to a sound alarm. When the plastic ball intersects the laser beams one after another, the emitted sound warning signals are recorded by a microphone. Afterwards, they are graphically displayed on a laptop which has sound editing application installed and is connected to the microphone. In Fig. 10 one can see the experimental setup and in Fig. 11 the results obtained with this setup. 1244 M. Oprea, Cristina Miron 9 Fig. 10 – Experimental setup – Laser-mirrors-detector. The colored versions may be accessed at http://www.infim.ro/rrp/ Fig. 11 – Recorded audio events. The colored versions may be accessed at http://www.infim.ro/rrp/. Measuring the distance h between the two laser beams and the time intervals between the two sound impulses, one can determine, based on the free fall law, the value of the acceleration of gravity g (Fig. 11). According to Fig. 9: v2 = v1 + g ( t2 − t1 ) = v1 + g ⋅ ∆t (6) v2 = 2 g ( h0 − h2 ) = 2 g ∆h2 v1 = 2 g ( h0 − h1 ) = 2 g ∆h1 (7) v2 − v1 = g ⋅ ∆t (8) 2 g ∆h2 − 2 g ∆h1 = g ⋅ ∆t (9) 10 Mobile phones in the modern teaching of physics g= 2 ( ∆h2 − ∆h1 ∆t 2 ) 1245 2 (10) . The experimental values can be found in Table 1. Table 1 Experimental data using the setup from Fig. 10. t1 [s] 3.094 14.559 25.129 35.847 46.911 t2 [s] 3.359 14.829 25.397 36.111 47.183 ∆t [s] 0.265 0.270 0.268 0.264 0.272 ∆t2 [s2] 0.0702 0.0729 0.0718 0.0696 0.0739 g [m/s2] 10.25 9.87 10.02 10.34 9.74 gaverage [m/s2] 10.044 The precise measurement of the time interval ∆t associated with the known time values of the space intervals ∆h2 and ∆h1 have led to a reduced dispersion (2.33%) of the calculated values of g compared to the known value g = 9,8m/s2. b. Experiments using the magnetometer. Knowing the local values of the Earth’s magnetic field represents a priority in geophysics investigations. During the physics lessons, in order to determine these values, we have used the application Metal Detector, which is shown in Fig. 12, based on the signals received from the mobile phone’s magnetic sensor. The average measured level of the Earth’s magnetic field was around 50µT(50mG). The presence of a ferromagnetic material determines a strong shift in the value of the local magnetic field of the Earth. For the practical applications of Magnetism lessons, we have determined and interpreted the values of the magnetic fields produced by different objects (heaters, grates, metallic rods, ferrites, magnets of different sizes and compositions, etc.) and by electromagnetically emissive devices (routers, switches, displays, mobile phones, high voltage lines, etc.). Fig. 12 – Magnetic field values near ferromagnetic objects (Metal Detector). The colored versions may be accessed at http://www.infim.ro/rrp/. Moreover, we compared the values of the magnetic fields measured in µT with the application Metal Detector with the values measured in mG with the application EMF Sensor Free, which is shown in Fig. 13, thus obtaining a very good match. 1246 M. Oprea, Cristina Miron 11 Fig. 13 – Magnetic field values measured near electromagnetically emissive sources (EMF Sensor Free). The colored versions may be accessed at http://www.infim.ro/rrp/. For the validation of the data obtained with the mobile phone applications, we set up a classical experiment for the determination of the values of the Earth’s magnetic field. In this experiment, we used a compass, a coil with N = 100 turns, an electrical power source with adjustable voltage and a multimeter to measure the voltage and the intensity of the electrical current (Fig. 16). To establish the exact N-S direction, we also used two reference compasses. The block diagram of the experiment can be seen in Fig. 14. Fig. 14 – Diagram for the determination of the terrestrial magnetic induction. The CuEm conductor used for the winding had a 0.5mm diameter and was placed in a multilayer geometry, on a circular bolster with a 30mm radius and 5mm thickness (Fig. 15). 12 Mobile phones in the modern teaching of physics 1247 Fig. 15 – The scheme of the coil used in the experiment. Once the geographical N-S direction is established, the longitudinal axis of the coil has been placed perpendicular on the direction of the lines of the Earth’s magnetic field (Fig. 16). Due to a 68 Ω (0.5W) resistor the current through the coil has been limited to values of tens of mA. The distances from the center of the coil, on its longitudinal axis, at which the experiments were performed, had the values: 30 mm, 45 mm, 60 mm. Fig. 16 – Experimental setup (on the left) and axial placement coil – compass (on the right). The colored versions may be accessed at http://www.infim.ro/rrp/. We measured deviations of the magnetic needle of the compass due to the interaction between the Earth’s magnetic field and the magnetic field of the coil on the interval 0–60° (Fig. 17, Fig. 18). 1248 M. Oprea, Cristina Miron 13 Fig. 17 – 10° deviation of the magnetic compass needle, voltage 2.00 V, current 20 mA. The colored versions may be accessed at http://www.infim.ro/rrp/. Fig. 18 – 30° deviation of the magnetic compass needle, voltage 6.07 V, current 70 mA. The colored versions may be accessed at http://www.infim.ro/rrp/. The recorded data enabled the calculation of the magnetic field induction value on the Oz axis, as shown in Fig. 19: B ( z) = µ0 N ⋅I 2 R2 (R 2 +z 2 ) 3 . (11) Fig. 19 – The magnetic field produced by a circular coil with N turns on the longitudinal axis Oz. 14 Mobile phones in the modern teaching of physics 1249 The table containing the measurement data is displayed in Table 2: Table 2 Experimental data for the determination of the values of the Earth’s magnetic field z = 30 mm DC Voltage source U [V] 1,17 1,87 2,95 4,17 5,39 Current intensity I [mA] 10 20 30 50 60 Deviation angle compass needle θ [grd] 10 20 30 40 50 tgθ 0,1763 0,3639 0,5773 0,8390 1,1917 Bc [µT) Coil magnetic induction 7,0458 14,09 21,13 28,18 35,22 Bt [µT] Terrestrial magnetic induction 39,96 38,72 36,60 33,58 29,55 The Earth’s magnetic field has been deduced from the relation Bt = Bc/tgθ. A graphic Bc = f (tgθ) was drawn in Fig. 20. Fig. 20 – The dependence of the magnetic field of the coil on the deviation angle of the compass (θ). The colored versions may be accessed at http://www.infim.ro/rrp/. From the slope of this graphic we can determine the value of the terrestrial magnetic induction Bt. The average value obtained for the terrestrial magnetic induction (40 µT) is fairly adequate for didactic purposes. Using the magnetometer from the mobile phone, we measured the average value Bt = 43 µT for the areas free from magnetic disturbances. c) Experiments using the GPS sensor. Using the data provided by the phone’s GPS sensor, the Android Speedometer application offers a large array of functions neccessary to determine physical measurements of interest for Mechanics experiments: GPS localizing, N-S geographical orientation, average motion speed, the maximum speed, the instantaneous speed, the motion time, the distance, as is shown in Fig. 21. 1250 M. Oprea, Cristina Miron 15 Fig. 21 – Measurement undertaken with Android Speedometer on a straight walking path. The colored versions may be accessed at http://www.infim.ro/rrp/. The didactic efficiency of this application was put to test in an experiment for the value determination of distance, speed and motion time of an object in an uniform and rectilinear movement. During the Mechanics class “The rectilinear and uniform motion”, we tested the didactic efficiency of this application in an experiment to determine the distance, speed and motion time. On the sports ground of the school we organized two groups of students of 5 persons each. In every group, 4 students maintained a fixed position, while the fifth student went back and forth between two fixed points. The distance and motion time of each student was measured, using different measurement instruments. Group 1 used a stop watch and a tape measure, while Group 2 performed the measurements with the help of the Android Speedometer application (Fig. 22). Fig. 22 – Schematic plan of the experiment. Comparing the final results of the experiment, we noticed an exceptional efficiency of the method based on the use of the smartphone, reflected in the time of data acquisition and processing of the measured values, which was considerably reduced. 16 Mobile phones in the modern teaching of physics 1251 3. CONCLUSIONS This methodology based study has underlined the fact that smartphones have become didactic instruments neccessary for the modern teaching and learning of Physics, as some studies on M-Learning concept point out [6, 8, 9, 10, 11]. The possibility to acquire diverse experimental data through sensors and to process it using specific application which offer numerical and graphic results relative to the phenomena being studied, make this device look like a miniature mobile Physics Laboratory. The smartphones enable a quick access to educational resources situated on web servers, mobile devices (tablets, other mobile phones) or fixed devices (PCs), as well as the swift data transfer towards external data storage and processing units. These capabilities define the mobile phones as digital mobile platform with important educational uses. When students feel interested to participate in physics experiments, they try to get involved actively in learning science concepts. Teachers may use particular instruments: real experiment [14–15], virtual experiments [16] and Mobile Learning [17–19]. Smartphones play a key role in the students’ increase of interest in the study of Physics and the motivation neccessary to study it further. Smartphones become for them essential tools in class, facilitating a large variety of calculations and measurements, diminishing the data acquisition and processing time and contributing to the approach and understanding of a wide spectrum of physical phenomena. In conclusion, this study emphasizes an indisputable aspect, on which any modern didactics of Physics will rely: in the future, the trully smart lessons will be based on a equally matching device – the smartphone. REFERENCES 1. Z.J. Lu, Learning with Mobile Technologies, Handheld Devices, and Smart Phones: Innovative Methods, IGI Global, Hershey, PA, USA, 2012. 2. J. Attewell, C. Savill-Smith (Eds.), Learning with mobile devices: Research and development: A book of papers, 3-11, Learning and Skills Development Agency, London, 2004. 3. V. Chirino, J. Noguez, Neri, L.V. Robledo–Rella, G.Aguilar, Students’ Perception about the Use of Mobile Devices in Self-Managed Learning Activities and Learning Gains Related to Mobile Learning Resources, In: Zennaro, M. & Canessa, E. (eds.), Mobile Science, Italia, Creative Commons, 2010. 4. M.A. Embi, N.M. Nordin (edit.), Mobile Learning: Malaysian Initiatives & Research Findings, Centre For Academic Advancement, University Kebangsaan Malaysia& Department of Higher Education, Ministry of Higher Education, 2013. 5. K.D. Goad, The Perception of Teachers Toward the Use of Mobile Technology as a Tool to Engage Students in Learning, PhD Dissertation, Indiana State University, Terre Haute, Indiana, May 2012; http://scholars.indstate.edu/bitstream/10484/4004/1/Kathryn%20Goad.pdf, 1252 M. Oprea, Cristina Miron 17 6. Desmond, Mobile Learning: The Next Generation of Learning, Distance Education International, 2005. 7. J. Perez-Losada, J. Fort, Using Smart Phones To Enhance Undergraduate Learning In Laboratory Classes, The University: An Institution of Society, CIDUI Barcelona, 2012. 8. N.O. Keskin, D. Metcalfthe, The Turkish Online Journal of Educational Technology, 10, 2, 202–208 (2011). 9. D. Laurillard, Pedagogical forms for mobile learning, In N. Pachler (Ed.): Mobile learning: towards a research agenda, WLE Centre, IOE, London, 2007. 10. M. Martinez, J.R. Hilera, Puls, 33, 207–215, (2010). 11. M. Sharples, J. Taylor, G. Vavoula, Towards a Theory of Mobile Learning, In H. van der Merwe & T. Brown, Mobile Technology: The Future of Learning in Your Hands, mLearn 2005 Book of Abstracts, 4th World Conference on mLearning, Cape Town, 25–28 October 2005, p.58. 12. G. Gorghiu, H. Andrei, L. M. Gorghiu, D. Popovici, G. Jiga, Study on the Progress of Learning Strategy in Education as Result of New Concepts Developed by European Projects, 11th European Conference E-COMM-LINE 2010, Bucharest, September 27–28, 2010. 13. G. Gorghiu, M. Bîzoi, A.M. Suduc, I.M. Gorghiu, W. Tłaczała, H. Andrei, D. Popovici, G. Jiga, Scientific Bulletin of the Electrical Engineering Faculty, 2, 75–79 (2009). 14. M. Garabet, C. Miron, I. Neacsu, F.F. Popescu, Romanian Reports in Physics, 64, 2, 633–651 (2012). 15. N. Dina, S. Craciun, M. Bulgariu, S. Antohe, Romanian Reports in Physics, 64, 3, 868–877 (2012). 16. L. Dinescu, M. Dinica, C. Miron, E.S. Barna, Romanian Reports in Physics, 65, 2, 578–590 (2013). 17. P. Vogt, J. Kuhn, Phys. Teach., 50, 182–183 (2012). 18. P. Vogt, J. Kuhn, Phys. Teach., 50, 439–440 (2012). 19. P. Vogt, J. Kuhn, S. Müller, Phys. Teach., 49, 383–384 (2011).
