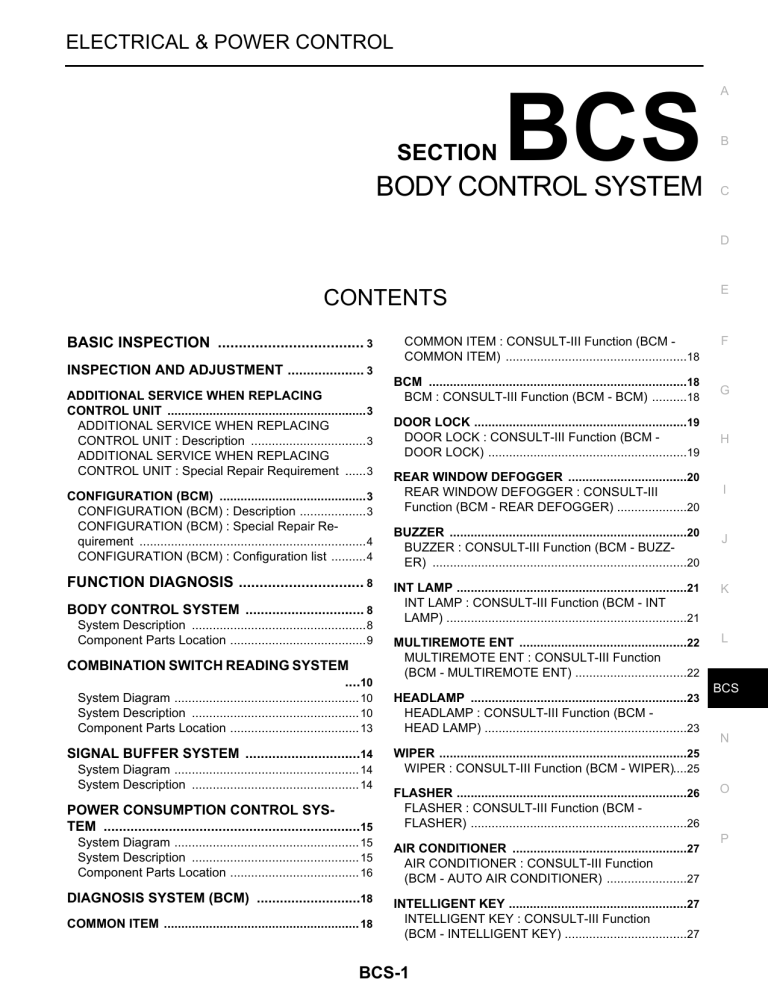

ELECTRICAL & POWER CONTROL
SECTION
BCS
BODY CONTROL SYSTEM
A
B
C
D
CONTENTS
BASIC INSPECTION .................................... 3
INSPECTION AND ADJUSTMENT ..................... 3
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT .......................................................... 3
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description .................................. 3
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement ...... 3
CONFIGURATION (BCM) ........................................... 3
CONFIGURATION (BCM) : Description .................... 3
CONFIGURATION (BCM) : Special Repair Requirement .................................................................. 4
CONFIGURATION (BCM) : Configuration list ........... 4
FUNCTION DIAGNOSIS ............................... 8
BODY CONTROL SYSTEM ................................ 8
System Description ................................................... 8
Component Parts Location ........................................ 9
COMBINATION SWITCH READING SYSTEM
....10
COMMON ITEM : CONSULT-III Function (BCM COMMON ITEM) .....................................................18
G
DOOR LOCK ..............................................................19
DOOR LOCK : CONSULT-III Function (BCM DOOR LOCK) ..........................................................19
H
REAR WINDOW DEFOGGER ...................................20
REAR WINDOW DEFOGGER : CONSULT-III
Function (BCM - REAR DEFOGGER) .....................20
I
BUZZER .....................................................................20
BUZZER : CONSULT-III Function (BCM - BUZZER) ..........................................................................20
K
MULTIREMOTE ENT .................................................22
MULTIREMOTE ENT : CONSULT-III Function
(BCM - MULTIREMOTE ENT) .................................22
L
SIGNAL BUFFER SYSTEM ...............................14
WIPER ........................................................................25
WIPER : CONSULT-III Function (BCM - WIPER)....25
System Diagram ...................................................... 15
System Description ................................................. 15
Component Parts Location ...................................... 16
DIAGNOSIS SYSTEM (BCM) ............................18
COMMON ITEM ......................................................... 18
J
INT LAMP ...................................................................21
INT LAMP : CONSULT-III Function (BCM - INT
LAMP) ......................................................................21
HEADLAMP ...............................................................23
HEADLAMP : CONSULT-III Function (BCM HEAD LAMP) ...........................................................23
POWER CONSUMPTION CONTROL SYSTEM ....................................................................15
F
BCM ...........................................................................18
BCM : CONSULT-III Function (BCM - BCM) ...........18
System Diagram ...................................................... 10
System Description ................................................. 10
Component Parts Location ...................................... 13
System Diagram ...................................................... 14
System Description ................................................. 14
E
FLASHER ...................................................................26
FLASHER : CONSULT-III Function (BCM FLASHER) ...............................................................26
AIR CONDITIONER ...................................................27
AIR CONDITIONER : CONSULT-III Function
(BCM - AUTO AIR CONDITIONER) ........................27
INTELLIGENT KEY ....................................................27
INTELLIGENT KEY : CONSULT-III Function
(BCM - INTELLIGENT KEY) ....................................27
BCS-1
BCS
N
O
P
COMB SW ................................................................. 27
COMB SW : CONSULT-III Function (BCM COMB SW) ............................................................. 27
IMMU ......................................................................... 28
IMMU : CONSULT-III Function (BCM - IMMU) ....... 28
BATTERY SAVER .................................................... 28
BATTERY SAVER : CONSULT-III Function (BCM
- BATTERY SAVER) .............................................. 28
TRUNK ...................................................................... 29
TRUNK : CONSULT-III Function (BCM - TRUNK)... 29
THEFT ALM .............................................................. 30
THEFT ALM : CONSULT-III Function (BCM THEFT ALM) .......................................................... 30
SIGNAL BUFFER ...................................................... 31
SIGNAL BUFFER : CONSULT-III Function (BCM
- SIGNAL BUFFER) ................................................ 31
PTC HEATER ............................................................ 31
PTC HEATER : CONSULT-III Function (BCM PTC HEATER) ........................................................ 31
COMPONENT DIAGNOSIS ........................ 33
U1000 CAN COMM CIRCUIT ............................ 33
Description .............................................................. 33
DTC Logic ............................................................... 33
Diagnosis Procedure .............................................. 33
U1010 CONTROL UNIT (CAN) ......................... 34
DTC Logic ............................................................... 34
Diagnosis Procedure .............................................. 34
Special Repair Requirement ................................... 34
POWER SUPPLY AND GROUND CIRCUIT ..... 35
Diagnosis Procedure .............................................. 35
COMBINATION SWITCH INPUT CIRCUIT ....... 36
Special Repair Requirement ................................... 37
COMBINATION SWITCH OUTPUT CIRCUIT ... 38
Diagnosis Procedure ............................................... 38
Special Repair Requirement ................................... 38
COMBINATION SWITCH .................................. 39
Description .............................................................. 39
Diagnosis Procedure ............................................... 39
ECU DIAGNOSIS ....................................... 40
BCM (BODY CONTROL MODULE) .................. 40
Reference Value ..................................................... 40
Wiring Diagram - BCM - .......................................... 56
Fail Safe ................................................................. 60
DTC Inspection Priority Chart ............................... 62
DTC Index .............................................................. 62
PRECAUTION ............................................ 63
PRECAUTIONS ................................................. 63
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" ................................................................. 63
SYMPTOM DIAGNOSIS ............................ 64
COMBINATION SWITCH SYSTEM SYMPTOMS ................................................................. 64
Symptom Table ....................................................... 64
ON-VEHICLE REPAIR ............................... 65
BCM (BODY CONTROL MODULE) .................. 65
Exploded View ........................................................ 65
Removal and Installation ......................................... 65
COMBINATION SWITCH .................................. 66
Exploded View ........................................................ 66
Removal and Installation ......................................... 66
Diagnosis Procedure .............................................. 36
BCS-2
INSPECTION AND ADJUSTMENT
< BASIC INSPECTION >
BASIC INSPECTION
A
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
B
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description
INFOID:0000000001189856
C
BEFORE REPLACEMENT
When replacing BCM, save or print current vehicle specification with CONSULT-III configuration before
replacement.
NOTE:
If “READ CONFIGURATION” can not be used, use the “WRITE CONFIGURATION - Manual setting” after
replacing BCM.
D
E
AFTER REPLACEMENT
CAUTION:
• When replacing BCM, you must perform “WRITE CONFIGURATION” with CONSULT-III.
- Complete the procedure of “WRITE CONFIGURATION” in order.
- If you set incorrect “WRITE CONFIGURATION”, incidents might occur.
- Configuration is different for each vehicle model. Confirm configuration of each vehicle model.
• When replacing BCM, perform the system initialization (NATS).
G
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement
H
INFOID:0000000001189857
F
1.SAVING VEHICLE SPECIFICATION
CONSULT-III Configuration
Perform “READ CONFIGURATION” to save or print current vehicle specification. Refer to BCS-3, "CONFIGURATION (BCM) : Description"
NOTE:
If “READ CONFIGURATION” can not be used, use the “WRITE CONFIGURATION - Manual setting” after
replacing BCM.
I
J
K
>> GO TO 2.
2.REPLACE BCM
L
Replace BCM. Refer to BCS-65, "Exploded View".
>> GO TO 3.
BCS
3.WRITING VEHICLE SPECIFICATION
CONSULT-III Configuration
Perform “WRITE CONFIGURATION - Config file” or “WRITE CONFIGURATION - Manual setting” to write
vehicle specification. Refer to BCS-4, "CONFIGURATION (BCM) : Special Repair Requirement".
>> GO TO 4.
N
O
4.INITIALIZE BCM (NATS)
Perform BCM initialization. (NATS)
P
>> WORK END
CONFIGURATION (BCM)
CONFIGURATION (BCM) : Description
INFOID:0000000001189858
Vehicle specification needs to be written with CONSULT-III because it is not written after replacing BCM.
BCS-3
INSPECTION AND ADJUSTMENT
< BASIC INSPECTION >
Configuration has three functions as follows
Function
Description
READ CONFIGURATION
• Reads the vehicle configuration of current BCM.
• Saves the read vehicle configuration.
WRITE CONFIGURATION - Manual setting
Writes the vehicle configuration with manual selection.
WRITE CONFIGURATION - Config file
Writes the vehicle configuration with saved data.
NOTE:
Manual setting item: Items which need selection by vehicle specifications
Automatic setting item: Items which are written in automatically (Setting can not be changed)
CAUTION:
• When replacing BCM, you must perform “WRITE CONFIGURATION” with CONSULT-III.
• Complete the procedure of “WRITE CONFIGURATION” in order.
• If you set incorrect “WRITE CONFIGURATION”, incidents might occur.
• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.
• Never perform “WRITE CONFIGURATION” except for new BCM.
CONFIGURATION (BCM) : Special Repair Requirement
INFOID:0000000001189859
1.WRITING MODE SELECTION
CONSULT-III Configuration
Select “CONFIGURATION” of BCM.
When writing saved data>>GO TO 2.
When writing manually>>GO TO 3.
2.PERFORM “WRITE CONFIGURATION - CONFIG FILE”
CONSULT-III Configuration
Perform “WRITE CONFIGURATION - Config file”.
>> WORK END
3.PERFORM “WRITE CONFIGURATION - MANUAL SETTING”
CONSULT-III Configuration
Select “WRITE CONFIGURATION - Manual setting”.
Identify the correct model and configuration list. Refer to BCS-4, "CONFIGURATION (BCM) : Configuration list".
3. Confirm and/or change setting value for each item.
4. Select “Setting change”.
CAUTION:
Make sure to select “Setting change” even if the indicated configuration of brand new BCM is
same as the desirable configuration. If not, configuration which is set automatically by selecting
vehicle model can not be memorized.
5. When “COMMAND FINISHED”, select “END“.
1.
2.
>> WORK END
CONFIGURATION (BCM) : Configuration list
INFOID:0000000001528923
GASOLINE ENGINE MODELS (RHD)
MANUAL SETTING ITEM
NOTE
Items
Setting value
AUTO LIGHT
WITH⇔WITHOUT
—
PTC HEATER
WITHOUT
—
BCS-4
INSPECTION AND ADJUSTMENT
< BASIC INSPECTION >
MANUAL SETTING ITEM
NOTE
Items
Setting value
HANDLE
RHD
—
KEYLESS ENTRY
WITH⇔WITHOUT
—
DTRL
WITHOUT
—
THEFT ALARM
WITH⇔WITHOUT
—
A
B
C
⇔: Items which confirm vehicle specifications
AUTO SETTING ITEM
NOTE
Items
Setting value
RAIN SENSOR
WITH or WITHOUT
—
H/L WSR SWTRG
FR WSR SW
—
H/L BULB
DEFAULT
—
FR FOG LAMP
WITH
DONGLE
WITH
—
SUPER LOCK
WITH
—
D
E
Even on a vehicle without front fog lamp. it displays “WITH”.
I-KEY
WITH or WITHOUT
—
DOOR/L SPEED
WITH
—
H/L BAT SAVER
WITH
—
KEY WARNING
MODE1
—
R LAMP LOGIC
MODE2
—
GASOLINE ENGINE MODELS (LHD)
F
G
H
I
MANUAL SETTING ITEM
NOTE
Items
Setting value
AUTO LIGHT
WITH⇔WITHOUT
—
PTC HEATER
WITHOUT
—
HANDLE
LHD
—
KEYLESS ENTRY
WITH⇔WITHOUT
—
DTRL
WITH⇔WITHOUT
—
THEFT ALARM
WITHOUT
—
J
K
L
⇔: Items which confirm vehicle specifications
BCS
AUTO SETTING ITEM
NOTE
Items
Setting value
RAIN SENSOR
WITH or WITHOUT
—
H/L WSR SWTRG
FR WSR SW
—
H/L BULB
DEFAULT
—
FR FOG LAMP
WITH
DONGLE
WITHOUT
—
SUPER LOCK
WITH or WITHOUT
—
N
O
Even on a vehicle without front fog lamp. it displays “WITH”.
I-KEY
WITH or WITHOUT
—
DOOR/L SPEED
WITH
—
H/L BAT SAVER
WITH
—
KEY WARNING
MODE1
—
R LAMP LOGIC
MODE2
—
BCS-5
P
INSPECTION AND ADJUSTMENT
< BASIC INSPECTION >
DIESEL ENGINE MODELS (RHD)
MANUAL SETTING ITEM
NOTE
Items
Setting value
AUTO LIGHT
WITH⇔WITHOUT
—
PTC HEATER
WITH
—
HANDLE
RHD
—
KEYLESS ENTRY
WITH⇔WITHOUT
—
DTRL
WITHOUT
—
THEFT ALARM
WITH⇔WITHOUT
—
⇔: Items which confirm vehicle specifications
AUTO SETTING ITEM
NOTE
Items
Setting value
RAIN SENSOR
WITH or WITHOUT
—
H/L WSR SWTRG
FR WSR SW
—
H/L BULB
DEFAULT
—
FR FOG LAMP
WITH
Even on a vehicle without front fog lamp. it displays “WITH”.
DONGLE
WITH
—
SUPER LOCK
WITH
—
I-KEY
WITH or WITHOUT
—
DOOR/L SPEED
WITH
—
H/L BAT SAVER
WITH
—
KEY WARNING
MODE1
—
R LAMP LOGIC
MODE2
—
DIESEL ENGINE MODELS (LHD)
MANUAL SETTING ITEM
NOTE
Items
Setting value
AUTO LIGHT
WITH⇔WITHOUT
—
PTC HEATER
WITH
—
HANDLE
LHD
—
KEYLESS ENTRY
WITH⇔WITHOUT
—
DTRL
WITH⇔WITHOUT
—
THEFT ALARM
WITHOUT
—
⇔: Items which confirm vehicle specifications
AUTO SETTING ITEM
NOTE
Items
Setting value
RAIN SENSOR
WITH or WITHOUT
—
H/L WSR SWTRG
FR WSR SW
—
H/L BULB
DEFAULT
—
FR FOG LAMP
WITH
Even on a vehicle without front fog lamp. it displays “WITH”.
DONGLE
WITHOUT
—
SUPER LOCK
WITH or WITHOUT
—
I-KEY
WITH or WITHOUT
—
DOOR/L SPEED
WITH
—
BCS-6
INSPECTION AND ADJUSTMENT
< BASIC INSPECTION >
AUTO SETTING ITEM
NOTE
Items
Setting value
H/L BAT SAVER
WITH
—
KEY WARNING
MODE1
—
R LAMP LOGIC
MODE2
—
A
B
C
D
E
F
G
H
I
J
K
L
BCS
N
O
P
BCS-7
BODY CONTROL SYSTEM
< FUNCTION DIAGNOSIS >
FUNCTION DIAGNOSIS
BODY CONTROL SYSTEM
System Description
INFOID:0000000001189860
OUTLINE
• BCM (Body Control Module) controls various electrical components. It receives the information required
from CAN communication and the signals received from each switch and sensor.
• BCM has a combination switch reading function for reading the status of combination switches (light, turn
signal, wiper and washer) in addition to functions for controlling the operation of various electrical components. It also has a signal transmission function, for other systems, and the power consumption control function that reduces the power consumption with the ignition switch OFF.
• BCM is equipped with the diagnosis function that operates with CONSULT-III and allows for various settings
to be changed.
BCM control function list
System
Refer to
Combination switch reading system
BCS-10, "System Diagram"
Signal buffer system
BCS-14, "System Diagram"
Power consumption control system
BCS-15, "System Diagram"
Auto light system
EXL-16, "System Diagram"
Turn signal and hazard warning lamp system
EXL-22, "System Diagram"
Headlamp system
EXL-12, "System Diagram"
Front fog lamp system
EXL-18, "System Diagram"
Rear fog lamp system
EXL-26, "System Diagram"
Exterior lamp battery saver system
EXL-28, "System Diagram"
Daytime running light system
EXL-14, "System Diagram"
Interior room lamp control system
INL-5, "System Diagram"
Interior room lamp battery saver system
INL-9, "System Diagram"
Front wiper and washer system
WW-5, "System Diagram"
Rear wiper and washer system
WW-10, "System Diagram"
Headlamp washer system
WW-14, "System Diagram"
Warning chime system
WCS-5, "WARNING CHIME SYSTEM : System Diagram"
Door lock system
• WITH I-KEY, WITHOUT SUPER LOCK: DLK-24, "DOOR LOCK AND UNLOCK SWITCH : System Diagram"
• WITH I-KEY & SUPER LOCK: DLK-285, "DOOR LOCK AND UNLOCK
SWITCH : System Diagram"
• WITHOUT I-KEY & SUPER LOCK: DLK-553, "DOOR LOCK AND UNLOCK SWITCH : System Diagram"
• WITHOUT I-KEY, WITH SUPER LOCK: DLK-713, "DOOR LOCK AND UNLOCK SWITCH : System Diagram"
Nissan anti-theft system
• WITH INTELLIGENT KEY SYSTEM: SEC-15, "System Diagram"
• WITHOUT INTELLIGENT KEY SYSTEM: SEC-171, "System Diagram"
Vehicle security system
• WITH INTELLIGENT KEY SYSTEM: SEC-20, "System Diagram"
• WITHOUT INTELLIGENT KEY SYSTEM: SEC-175, "System Diagram"
Rear window defogger system
DEF-4, "System Diagram"
Multi-remote control system
• WITHOUT I-KEY & SUPER LOCK: DLK-556, "KEYFOB : System Diagram"
• WITHOUT I-KEY, WITH SUPER LOCK: DLK-716, "KEYFOB : System Diagram"
BCS-8
BODY CONTROL SYSTEM
< FUNCTION DIAGNOSIS >
System
Intelligent Key system
Refer to
• WITH I-KEY, WITHOUT SUPER LOCK: DLK-28, "INTELLIGENT KEY :
System Diagram"
• WITH I-KEY & SUPER LOCK: DLK-289, "INTELLIGENT KEY : System Diagram"
Power window system
PWC-5, "System Diagram"
PTC heater control system
HAC-46, "Description"
A
B
C
Component Parts Location
INFOID:0000000001189861
D
E
F
G
H
JPMIA0240ZZ
1.
BCM
A.
Over the glove box
I
J
K
L
BCS
N
O
P
BCS-9
COMBINATION SWITCH READING SYSTEM
< FUNCTION DIAGNOSIS >
COMBINATION SWITCH READING SYSTEM
System Diagram
INFOID:0000000001189862
JPMIA0120GB
System Description
INFOID:0000000001189863
OUTLINE
• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the
status of each switch.
• BCM has a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a
maximum of 20 switch status.
COMBINATION SWITCH MATRIX
Combination switch circuit
JPMIA0121GB
Combination switch INPUT-OUTPUT system list
System
OUTPUT 1
OUTPUT 2
OUTPUT 3
OUTPUT 4
OUTPUT 5
INPUT 1
—
FR WASHER
FR WIPER LOW
TURN LH
TURN RH
INPUT 2
FR WIPER HI
—
FR WIPER INT
PASSING
HEADLAMP 1
INPUT 3
INT VOLUME 1
RR WASHER
—
HEADLAMP 2
HI BEAM
BCS-10
COMBINATION SWITCH READING SYSTEM
< FUNCTION DIAGNOSIS >
System
OUTPUT 1
OUTPUT 2
OUTPUT 3
OUTPUT 4
OUTPUT 5
INPUT 4
RR WIPER INT
INT VOLUME 3
AUTO LIGHT
—
TAIL LAMP
INPUT 5
INT VOLUME 2
RR WIPER
RR FOG
FR FOG
—
NOTE:
A
B
Headlamp has a dual system switch.
COMBINATION SWITCH READING FUNCTION
C
Description
• BCM reads the status of the combination switch at 10 ms interval normally.
D
E
F
JPMIA0067GB
•
-
NOTE:
BCM reads the status of the combination switch at 20 ms interval when BCM is controlled at low power consumption control mode.
BCM operates as follows and judges the status of the combination switch.
INPUT 1 - 5 outputs the voltage waveforms of 5 systems simultaneously.
It operates the transistor on OUTPUT side in the following order: OUTPUT 5 → 4 → 3 → 2 → 1.
The voltage waveform of INPUT corresponding to the formed circuit changes according to the operation of
the transistor on OUTPUT side if any (1 or more) switches are ON.
It reads this change of the voltage as the status signal of the combination switch.
G
H
I
J
K
L
BCS
N
O
P
JPMIA0068GB
Operation Example
In the following operation example, the combination of the status signals of the combination switch is replaced
as follows: INPUT 1 - 5 to “1 - 5” and OUTPUT 1 - 5 to “A - E”.
Example 1: When a switch (TURN RH switch) is turned ON
BCS-11
COMBINATION SWITCH READING SYSTEM
< FUNCTION DIAGNOSIS >
• The circuit between INPUT 1 and OUTPUT 5 is formed when the TURN RH switch is turned ON.
JPMIA0122GB
• BCM detects the combination switch status signal “1E” when the signal of OUTPUT 5 is input to INPUT 1.
• BCM judges that the TURN RH switch is ON when the signal “1E” is detected.
Example 2: When some switches (turn RH switch, front wiper LO switch) are turned ON
• The circuits between INPUT 1 and OUTPUT 5 and between INPUT 1 and OUTPUT 3 are formed when the
TURN RH switch and FR WIPER LOW switch are turned ON.
JPMIA0123GB
• BCM detects the combination switch status signal “1CE” when the signals of OUTPUT 3 and OUTPUT 5 are
input to INPUT 1.
• BCM judges that the TURN RH switch and FR WIPER LOW switch are ON when the signal “1CE” is
detected.
WIPER INTERMITTENT DIAL POSITION SETTING (FRONT WIPER INTERMITTENT OPERATION)
BCM judges the wiper intermittent dial 1 - 7 by the status of INT VOLUME 1, 2 and 3 switches.
BCS-12
COMBINATION SWITCH READING SYSTEM
< FUNCTION DIAGNOSIS >
Wiper intermittent
dial position
Intermittent
operation delay
interval
INT VOLUME switch ON/OFF status
INT VOLUME 1 switch
INT VOLUME 2 switch
INT VOLUME 3 switch
ON
ON
ON
ON
ON
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
ON
ON
OFF
ON
OFF
1
2
Short
3
4
↑
↓
5
6
A
Long
7
Component Parts Location
INFOID:0000000001189864
B
C
D
E
F
G
H
I
JPMIA0243ZZ
1.
Combination switch
A.
Over the glove box
2.
J
BCM
K
L
BCS
N
O
P
BCS-13
SIGNAL BUFFER SYSTEM
< FUNCTION DIAGNOSIS >
SIGNAL BUFFER SYSTEM
System Diagram
INFOID:0000000001189865
JPMIA0449GB
System Description
INFOID:0000000001189866
OUTLINE
BCM has the signal transmission function that outputs/transmits each input/received signal to each unit.
Signal transmission function list
Signal name
Door switch signal
Input
Output
•
•
•
•
Any door switch
Combination meter (CAN)
IPDM E/R (CAN)
Intelligent Key unit (CAN)
NAVI control unit (CAN)
Description
Inputs the door switch signal
and transmits it via CAN communication.
Stop lamp switch signal
Stop lamp switch
TCM (CAN)
Inputs the stop lamp switch signal and transmits the stop lamp
switch signal via CAN communication.
Oil pressure switch signal
IPDM E/R (CAN)
Combination meter (CAN)
Transmits the received oil pressure switch signal via CAN
communication.
A/C switch signal
Auto amp. or heater control
panel
ECM (CAN)
Blower fan motor switch signal
Auto amp. or Fan switch
BCS-14
Inputs the A/C switch signal and
transmits it with CAN communication.
Inputs the Blower fan motor
switch signal and transmits it
with CAN communication.
POWER CONSUMPTION CONTROL SYSTEM
< FUNCTION DIAGNOSIS >
POWER CONSUMPTION CONTROL SYSTEM
System Diagram
A
INFOID:0000000001189867
B
C
D
E
JPMIA0125GB
System Description
F
INFOID:0000000001189868
G
OUTLINE
• BCM incorporates a power consumption control function that reduces the power consumption according to
the vehicle status.
• BCM switches the status (control mode) by itself with the power saving control function. It performs the sleep
request to each unit (IPDM E/R, combination meter and Intelligent Key unit) that operates with the ignition
switch OFF.
H
I
Normal mode (wake-up)
- CAN communication is normally performed with other units
- Each control with BCM is operating properly
J
CAN communication sleep mode (CAN sleep)
- CAN transmission is stopped
- Control with BCM only is operating
K
Low power consumption mode (BCM sleep)
- Low power consumption control is active
- CAN transmission is stopped
L
LOW POWER CONSUMPTION CONTROL WITH BCM
BCM reduces the power consumption with the following operation in the low power consumption mode.
• The reading interval of the each switches changes from 10 ms interval to 20 ms interval.
BCS
SLEEP OPERATION
• BCM receives the sleep-ready signal (ready) from IPDM E/R, combination meter and Intelligent Key unit via
CAN communication.
• BCM transmits the sleep wake up signal (sleep) to each unit when all of the CAN sleep conditions are fulfilled.
• Each unit stops the transmission of CAN communication with the sleep wake up signal. BCM is in CAN communication sleep mode.
• BCM is in the low power consumption mode and perform the low power consumption control when all of the
BCM sleep conditions are fulfilled with CAN sleep condition.
BCS-15
N
O
P
POWER CONSUMPTION CONTROL SYSTEM
< FUNCTION DIAGNOSIS >
Sleep condition
CAN sleep condition
•
•
•
•
•
•
•
•
•
•
•
•
BCM sleep condition
Receiving the sleep-ready signal (ready) from all units
Ignition switch: OFF
Vehicle security system alarm: Not operation
Warning lamp: Not operation
Warning chime: Not operation
Stop lamp switch: OFF
Key switch status: No change for 2 seconds
Hazard warning lamp: Not operation
Exterior lamp: OFF
Door lock status: No change for 2 seconds
CONSULT-III communication status: Not communication
Door switch status: No change for 2 seconds
The controls only BCM are completed.
(Interior room lamp battery saver: Time out etc.)
WAKE-UP OPERATION
• BCM transmits sleep wake up signal (wake up) to each unit when any condition listed below is established,
and then goes into normal mode from low power consumption mode.
• Each unit starts transmissions with CAN communication by receiving sleep wake up signals. Each unit transmits wake up signals to BCM with CAN communication to convey the start of CAN communication.
Wake-up condition
BCM wake-up condition
•
•
•
•
•
•
•
Ignition switch: OFF → ACC or ON
Stop lamp switch: ON (Depress brake pedal)
Any door switch: OFF → ON
Lighting switch: OFF → 1ST or PASS
Hazard switch: OFF → ON
Back door opener switch OFF → ON
Remote keyless entry receiver: Receiving
Component Parts Location
INFOID:0000000001189869
JPMIA0239ZZ
BCS-16
POWER CONSUMPTION CONTROL SYSTEM
< FUNCTION DIAGNOSIS >
1.
Combination meter
4.
Intelligent Key unit
A.
Over the glove box
2.
BCM
3.
IPDM E/R
B.
Engine room (left side)
C.
Over the instrument lower panel
(driver side)
A
B
C
D
E
F
G
H
I
J
K
L
BCS
N
O
P
BCS-17
DIAGNOSIS SYSTEM (BCM)
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)
INFOID:0000000001189870
APPLICATION ITEM
CONSULT-III performs the following functions via CAN communication with BCM.
Diagnosis mode
Function Description
Work Support
Changes the setting for each system function.
Self Diagnostic Result
Displays the diagnosis results judged by BCM. Refer to BCS-62, "DTC Index".
CAN Diag Support Monitor
Monitors the reception status of CAN communication viewed from BCM.
Data Monitor
The BCM input/output signals are displayed.
Active Test
The signals used to activate each device are forcibly supplied from BCM.
Ecu Identification
The BCM part number is displayed.
Configuration
• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.
SYSTEM APPLICATION
BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.
×: Applicable item
System
—
Door lock
Sub system selection item
Diagnosis mode
WORK SUPPORT
BCM
×
DOOR LOCK
×
×
DATA MONITOR
ACTIVE TEST
×
×
×
×
×
×
×
×
×
MULTI REMOTE ENT
×
×
×
Exterior lamp
HEAD LAMP
×
×
×
Wiper and washer
WIPER
×
×
×
Turn signal and hazard warning lamps
FLASHER
×
×
Air conditioner
AIR CONDITONER
×
Intelligent Key system
INTELLIGENT KEY
×
Combination switch
COMB SW
×
Immobilizer
IMMU
×
×
Interior room lamp battery saver
BATTERY SAVER
×
×
Back door open
TRUNK
×
×
Vehicle security system
THEFT ALM
×
×
Signal buffer system
SIGNAL BUFFER
×
×
PTC heater system
PTC HEATER
×
×
Rear window defogger
REAR DEFOGGER
Warning chime
BUZZER
Interior room lamp
INT LAMP
Remote keyless entry system
×
×
BCM
BCM : CONSULT-III Function (BCM - BCM)
WORK SUPPORT
BCS-18
INFOID:0000000001189871
DIAGNOSIS SYSTEM (BCM)
< FUNCTION DIAGNOSIS >
Item
Description
RESET SETTING VALUE
A
Return a value set with WORK SUPPORT of each system to a default value in factory shipment.
DOOR LOCK
B
DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)
INFOID:0000000001189872
C
DATA MONITOR
Monitor Item
IGN ON SW
Indicates [ON/OFF] condition of ignition switch in ON position.
ACC ON SW
Indicates [ON/OFF] condition of ignition switch in ACC position.
PUSH SW*1
Indicates [ON/OFF] condition of ignition knob switch.
KEY ON SW
Indicates [ON/OFF] condition of key switch.
CDL LOCK SW
Indicates [ON/OFF] condition of door lock and unlock switch.
CDL UNLOCK SW
Indicates [ON/OFF] condition of door lock and unlock switch.
DOOR SW-DR
Indicates [ON/OFF] condition of front door switch (driver side).
DOOR SW-AS
Indicates [ON/OFF] condition of front door switch (passenger side).
DOOR SW-RR
Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL
Indicates [ON/OFF] condition of rear door switch LH.
BACK DOOR SW
Indicates [ON/OFF] condition of back door switch.
KEYLESS LOCK*2
Indicates [ON/OFF] condition of lock signal from key fob.
KEYLESS UNLOCK*2
Indicates [ON/OFF] condition of unlock signal from key fob.
*1
*1
Indicates [ON/OFF] condition of unlock signal from Intelligent Key.
UNLOCK SHOCK
Indicates [ON/OFF] condition of signal from air bag diagnosis unit.
• ON: During the unlock operation interlock with air bag.
• OFF: Other than above.
SHOCK SENSOR
Indicates [NOMAL/ON/OFF] condition of circuit between BCM and air bag diagnosis sensor unit.
• NORMAL: Ignition switch ON. (BCM is receiving normal condition signal from air bag diagnosis sensor unit.)
• ON: During the receiving of air bag deployment signal from air bag diagnosis sensor
unit.
• OFF: After the receiving of air bag deployment signal from air bag diagnosis sensor unit.
VEHICLE SPEED
Displays the vehicle speed signal received from combination meter by numerical value
[km/h].
I-KEY UNLOCK
D
E
F
G
H
I
Indicates [ON/OFF] condition of lock signal from Intelligent Key.
I-KEY LOCK
*1:
Condition
For the Intelligent key equipped vehicle.
J
K
L
BCS
N
*2
: For the multi remote control system equipped vehicle.
ACTIVE TEST
O
Test item
Description
SUPER LOCK*1
This test is able to check super lock operation [LOCK (SET)/UNLOCK (RELEASE)].
DOOR LOCK IND
This test is able to check door lock indicator (built in door lock and unlock switch on center
console) operation [ON/OFF].
DOOR LOCK
This test is able to check door lock operation [ALL LOCK/ALL UNLOCK/DR UNLOCK/
OTHER UNLOCK].
:*1 For the super lock equipped vehicle.
WORK SUPPORT
BCS-19
P
DIAGNOSIS SYSTEM (BCM)
< FUNCTION DIAGNOSIS >
Test item
Description
SECURITY DOOR LOCK SET
Anti hijack function mode can be changed in this mode.
• ON: Anti hijack mode is active.
• OFF: Anti hijack mode is inactive.
REAR WINDOW DEFOGGER
REAR WINDOW DEFOGGER : CONSULT-III Function (BCM - REAR DEFOGGER)
INFOID:0000000001542936
Data monitor
Monitor Item
Description
REAR DEF SW
Displays “Press (ON)/other (OFF)” status determined with the rear window defogger switch.
IGN ON SW
Indicates [ON/OFF] condition of ignition switch in ON position.
ACC ON SW
Indicates [ON/OFF] condition of ignition switch in ACC position.
ACTIVE TEST
Test Item
REAR DEFOGGER
Description
Give a drive signal to the rear window defogger relay to activate it.
BUZZER
BUZZER : CONSULT-III Function (BCM - BUZZER)
INFOID:0000000001542937
CONSULT-III FUNCTION (BCM – BUZZER)
Test item
Buzzer
Diagnosis mode
Description
Data Monitor
Displays BCM input data in real time.
Active Test
Operation of electrical loads can be checked by sending driving signal to them.
DATA MONITOR
Display item
[Unit]
Description
IGN ON SW
[On/Off]
Ignition switch (ON) status judged by ignition power supply input.
KEY ON SW
[On/Off]
Key switch status.
DOOR SW -DR
[On/Off]
Front door switch (driver side) status judged by BCM.
TAIL LAMP SW
[On/Off]
Lighting switch status judged by the lighting switch signal read with combination switch reading function.
DOOR SW -AS
[On/Off]
Front door switch (passenger side) status judged by BCM.
DOOR SW -RR
[On/Off]
Rear door switch RH status judged by BCM.
DOOR SW -RL
[On/Off]
Rear door switch LH status judged by BCM.
BACK DOOR SW
[On/Off]
Back door switch status judged by BCM.
VEHICLE SPEED
[km/h]
Vehicle speed signal value received from combination meter via CAN communication.
ACTIVE TEST
BCS-20
DIAGNOSIS SYSTEM (BCM)
< FUNCTION DIAGNOSIS >
Display item
Description
A
LIGHT WARN ALM
The light reminder warning operation can be checked by operating the relevant function (On/Off).
IGN KEY WARN ALM
The key warning operation can be checked by operating the relevant function (On/Off).
KEY REMINDER WARN
The key reminder warning operation can be checked by operating the relevant function (On/Off).
B
INT LAMP
C
INT LAMP : CONSULT-III Function (BCM - INT LAMP)
INFOID:0000000001542939
WORK SUPPORT
D
E
F
G
H
JPLIA0093GB
Service item
ROOM LAMP TIMER SET
SET I/L D-UNLCK INTCON
ROOM LAMP ON TIME SET
ROOM LAMP OFF TIME SET
Setting item
Setting
MODE 2
7.5 sec.
MODE 3*
15 sec.
MODE 4
30 sec.
On*
With the interior room lamp timer function
Off
Without the interior room lamp timer function
MODE 1
0.5 sec.
MODE 2*
1 sec.
MODE 3
2 sec.
MODE 4
3 sec.
MODE 5
4 sec.
MODE 6
5 sec.
MODE 7
0 sec.
MODE 8
1 sec.
linear
MODE 1
0.5 sec.
MODE 2*
1 sec.
MODE 3
2 sec.
MODE 4
3 sec.
MODE 5
4 sec.
MODE 6
5 sec.
MODE 7
0 sec.
MODE 8
1 sec.
linear
Sets the interior room lamp ON time. (Timer operating time)
I
J
K
L
Sets the interior room lamp gradual brightening time.
BCS
N
O
P
Sets the interior room lamp gradual dimming time.
BCS-21
DIAGNOSIS SYSTEM (BCM)
< FUNCTION DIAGNOSIS >
Service item
Setting item
R LAMP TIMER LOGIC SET
Setting
MODE 1*
Interior room lamp timer activates with synchronizing all doors.
MODE 2
Interior room lamp timer activates with synchronizing the driver door
only.
*: Initial setting
DATA MONITOR
Monitor item
[Unit]
Description
IGN ON SW
[On/Off]
Ignition switch (ON) status judges from IGN signal (ignition power supply)
ACC SW
[On/Off]
Ignition switch (ACC) status judges from ACC signal (ACC power supply)
KEY ON SW
[On/Off]
The switch status input from key switch
PUSH SW
[On/Off]
Push switch status received from Intelligent Key unit by CAN communication
DOOR SW-DR
[On/Off]
The switch status input from front door switch (driver side)
DOOR SW-AS
[On/Off]
The switch status input from front door switch (passenger side)
DOOR SW-RR
[On/Off]
The switch status input from rear door switch RH
DOOR SW- RL
[On/Off]
The switch status input from rear door switch LH
BACK DOOR SW
[On/Off]
The switch status input from back door switch
CDL LOCK SW
[On/Off]
Lock switch status input from door lock and unlock switch
CDL UNLOCK SW
[On/Off]
Unlock switch status input from door lock and unlock switch
I-KEY LOCK
[On/Off]
Lock signal status received from Intelligent Key unit by CAN communication
I-KEY UNLOCK
[On/Off]
Unlock signal status received from Intelligent Key unit by CAN communication
KEYLESS LOCK
[On/Off]
Lock signal status received from remote keyless entry receiver (integrated in the
BCM)
KEYLESS UNLOCK
[On/Off]
Unlock signal status received from remote keyless entry receiver (integrated in the
BCM)
ACTIVE TEST
Test item
Operation
Description
On
Outputs the interior room lamp control signal to turn the interior room lamps ON.
[Map lamp, personal lamp, room lamp, luggage room lamp (when applicable lamps
switch is in DOOR position.)]
Off
Stops the interior room lamp control signal to turn the interior room lamps.
INT LAMP
MULTIREMOTE ENT
MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)
INFOID:0000000001189876
BCM CONSULT-III FUNCTION
CONSULT-III performs the following functions via CAN communication with BCM.
BCS-22
DIAGNOSIS SYSTEM (BCM)
< FUNCTION DIAGNOSIS >
Diagnosis mode
Function Description
WORK SUPPORT
Changes the setting for each system function.
DATA MONITOR
The BCM input/output signals are displayed.
ACTIVE TEST
The signals used to activate each device are forcibly supplied from BCM.
A
B
DATA MONITOR
C
Monitor Item
Condition
IGN ON SW
Indicates [ON/OFF] condition of ignition switch in ON position.
ACC ON SW
Indicates [ON/OFF] condition of ignition switch in ACC position.
KEY ON SW
Indicates [ON/OFF] condition of key switch.
KEYKESS LOCK
Indicates [ON/OFF] condition of lock signal from key fob.
KEYLESS UNLOCK
Indicates [ON/OFF] condition of unlock signal from key fob.
DOOR SW-DR
Indicates [ON/OFF] condition of front door switch (driver side).
DOOR SW-AS
Indicates [ON/OFF] condition of front door switch (passenger side).
DOOR SW-RR
Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL
Indicates [ON/OFF] condition of rear door switch LH.
BACK DOOR SW
Indicates [ON/OFF] condition of back door switch.
CDL LOCK SW
Indicates [ON/OFF] condition of door lock and unlock switch.
CDL UNLOCK SW
Indicates [ON/OFF] condition of door lock and unlock switch.
KEYLESS PANIC
This item is indicated, but not monitored.
D
E
F
G
H
MEMORY 1
I
MEMORY 2
MEMORY 3
Indicates [ON/OFF] condition of key fob ID code registration.
MEMORY 4
J
MEMORY 5
ACTIVE TEST
K
Test item
Description
DOOR LOCK
This test is able to check warning chime in combination meter operation. [ALL LOCK/ALL UNLOCK/DR UNLOCK/OTHER UNLOCK]
INT LAMP
This test is able to check interior lamp operation [ON/OFF].
FLASHER
This test is able to check flasher operation [LH/RH/OFF].
L
BCS
WORK SUPPORT
Test item
N
Description
HAZARD LAMP SET
Answer back function (hazard) mode can be changed in this mode.
For the detail of the setting, refer to DLK-572, "System Description".
AUTO LOCK SET
Auto door lock time can be changed in this mode.
• MODE 1: 1 minute
• MODE 2: 2 minutes
• MODE 3: 3 minutes
• MODE 4: 4 minutes
• MODE 5: 5 minutes
O
P
HEADLAMP
HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)
WORK SUPPORT
BCS-23
INFOID:0000000001548083
DIAGNOSIS SYSTEM (BCM)
< FUNCTION DIAGNOSIS >
Service item
HEAD LIGHT TIMER
Setting item
Setting
MODE 1
10 sec.
MODE 2*
30 sec.
Sets follow me home function activating time.
*: Initial setting
DATA MONITOR
Monitor item
[Unit]
Description
IGN ON SW
[On/Off]
Ignition switch (ON) status judged from IGN signal (ignition power supply)
ACC SW
[On/Off]
Ignition switch (ACC) status judged from ACC signal (ACC power supply)
HI BEAM SW
[On/Off]
HEAD LAMP SW1
[On/Off]
HEAD LAMP SW2
[On/Off]
TAIL LAMP SW
[On/Off]
AUTO LIGHT SW
[On/Off]
Each switch status that BCM judges from the combination switch reading function
PASSING SW
[On/Off]
FR FOG SW
[On/Off]
RR FOG SW
[On/Off]
DOOR SW-DR
[On/Off]
The switch status input from front door switch (driver side)
DOOR SW-AS
[On/Off]
The switch status input from front door switch (passenger side)
DOOR SW-RR
[On/Off]
The switch status input from rear door switch RH
DOOR SW- RL
[On/Off]
The switch status input from rear door switch LH
BACK DOOR SW
[On/Off]
The switch status input from back door switch
TURN SIGNAL R
[On/Off]
TURN SIGNAL L
[On/Off]
Each switch status that BCM judges from the combination switch reading function
ENGINE RUNNING
[On/Off]
The engine status received from ECM with CAN communication
LIT-SEN FAIL
[OK/NOTOK]
• The sensor status received from light & rain sensor with serial link
• The serial link condition that BCM judges
AUT LIGHT SYS
[On/Off]
Auto light system status received from light & rain sensor with serial link
HD LIGHT TIME
[Sec]
Setting time of the follow me home function set by the work support
ACTIVE TEST
BCS-24
DIAGNOSIS SYSTEM (BCM)
< FUNCTION DIAGNOSIS >
Test item
TAIL LAMP
HEAD LAMP
FR FOG LAMP
Operation
Description
On
Transmits the position light request signal to IPDM E/R with CAN communication to turn the tail lamp ON.
Off
Stops the tail lamp request signal transmission.
Hi
Transmits the high beam request signal with CAN communication to turn
the headlamp (HI).
Lo
Transmits the low beam request signal with CAN communication to turn
the headlamp (LO).
Off
Stops the high & low beam request signal transmission.
On
Transmits the front fog lights request signal to IPDM E/R with CAN communication to turn the front fog lamp ON.
Off
Stops the front fog lights request signal transmission.
On
• Outputs the voltage to turn the rear fog lamp ON.
• Transmits the rear fog lamp status signal to the combination meter with
CAN communication to turn the rear fog lamp indicator lamp ON.
Off
• Stops the voltage to turn the rear fog lamp OFF.
• Stops the rear fog lamp status signal transmission.
On
Transmits the day time running light request signal to IPDM E/R with
CAN communication to turn the each lamps ON.
Off
Stops the day time running light request signal transmission.
RR FOG LAMP
DAYTIME RUNNING LIGHT
A
B
C
D
E
F
WIPER
G
H
WIPER : CONSULT-III Function (BCM - WIPER)
INFOID:0000000001542944
I
WORK SUPPORT
Service item
WIPER SPEED
SETTING
Setting
item
Description
On*
With vehicle speed
(Front wiper intermittent time linked with the vehicle speed and wiper intermittent dial position)
Off
Without vehicle speed
(Front wiper intermittent time linked with the wiper intermittent dial position)
J
K
*:Factory setting
L
DATA MONITOR
Monitor Item
[Unit]
Description
VEHICLE SPEED
[km/h]
The value of the vehicle speed signal received from combination meter with CAN communication.
IGN ON SW
[Off/On]
Ignition switch ON status judged from ignition power supply.
IGN SW CAN
[Off/On]
Ignition switch ON status received from IPDM E/R with CAN communication.
BCS
N
O
FR WIPER HI
[Off/On]
FR WIPER LOW
[Off/On]
FR WIPER INT
[Off/On]
P
Each switch status that BCM judges from the combination switch reading function.
FR WASHER SW
[Off/On]
BCS-25
DIAGNOSIS SYSTEM (BCM)
< FUNCTION DIAGNOSIS >
Monitor Item
[Unit]
Description
INT VOLUME
[1 − 7]
Each switch status that BCM judges from the combination switch reading function.
FR WIPER STOP
[Off/On]
Front wiper motor (stop position) status received from IPDM E/R with CAN communication.
RR WIPER ON
[Off/On]
RR WIPER INT
[Off/On]
Each switch status that BCM judges from the combination switch reading function.
RR WASHER SW
[Off/On]
RR WIPER STOP
[Off/On]
Rear wiper motor (stop position) status input from the rear wiper motor.
REVERSE SW CAN
[Off/On]
Reverse switch status received from IPDM E/R with CAN communication.
H/L WASH SW
[Off/On]
NOTE:
The item is indicated, but not monitored.
ACTIVE TEST
Test item
Operation
Description
Hi
Transmits the front wiper request signal (HI) to IPDM E/R with CAN communication to operate the front wiper HI operation.
Lo
Transmits the front wiper request signal (LO) to IPDM E/R with CAN communication to
operate the front wiper LO operation.
Int
Transmits the front wiper request signal (INT) to IPDM E/R with CAN communication to
operate the front wiper INT operation.
Off
Stops transmitting the front wiper request signal to stop the front wiper operation.
FR WIPER
RR WIPER
HEADLAMP WASHER
On
Outputs the voltage to operate the rear wiper motor.
Off
Stops the voltage to stop.
On
Transmits the headlamp washer request signal to IPDM E/R with CAN communication to
operate the headlamp washer operation.
FLASHER
FLASHER : CONSULT-III Function (BCM - FLASHER)
INFOID:0000000001548084
DATA MONITOR
Monitor item
[Unit]
Description
IGN ON SW
[On/Off]
Ignition switch (ON) status judged from IGN signal (ignition power supply)
HAZARD SW
[On/Off]
The switch status input from the hazard switch
TURN SIGNAL R
[On/Off]
TURN SIGNAL L
[On/Off]
Each switch condition that BCM judges from the combination switch reading function
ACTIVE TEST
BCS-26
DIAGNOSIS SYSTEM (BCM)
< FUNCTION DIAGNOSIS >
Test item
FLASHER
Operation
Description
A
RH
Outputs the voltage to turn the right side turn signal lamps ON.
LH
Outputs the voltage to turn the left side turn signal lamps ON.
Off
Stops the voltage to turn the turn signal lamps OFF.
B
AIR CONDITIONER
AIR CONDITIONER : CONSULT-III Function (BCM - AUTO AIR CONDITIONER)
C
INFOID:0000000001542946
D
DATA MONITOR
Display Item List
Monitor Item [Unit]
E
Contents
IGN SW
[On/Off]
Displays [ignition switch position (On)/(Off), ACC position (Off)] status as judged form ignition
switch signal.
FAN ON SIG
[On/Off]
Displays [FAN (On)/FAN (Off)] status as judged form blower fan motor switch signal.
AIR COND SW
[On/Off]
Displays [COMP (On)/COMP (Off)] status as judged form air conditioner switch signal.
INTELLIGENT KEY
F
G
INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)
INFOID:0000000001189881
H
DATA MONITOR
Monitor Item
Condition
IGN ON SW
Indicates [ON/OFF] condition of ignition switch in ON position.
ACC ON SW
Indicates [ON/OFF] condition of ignition switch in ACC position.
KEY ON SW
Indicates [ON/OFF] condition of key switch.
PUSH SW
Indicates [ON/OFF] condition of ignition knob switch.
I-KEY LOCK
Indicates [ON/OFF] condition of lock signal from Intelligent Key.
I-KEY UNLOCK
Indicates [ON/OFF] condition of unlock signal from Intelligent Key.
I
J
K
COMB SW
COMB SW : CONSULT-III Function (BCM - COMB SW)
L
INFOID:0000000001189882
DATA MONITOR
BCS
Monitor item [UNIT]
Description
TURN SIGNAL R
[Off/On]
Displays the status of the TURN RH switch in combination switch judged by BCM with the combination switch
reading function.
TURN SIGNAL L
[Off/On]
Displays the status of the TURN LH switch in combination switch judged by BCM with the combination switch
reading function.
HI BEAM SW
[Off/On]
Displays the status of the HI BEAM switch in combination switch judged by BCM with the combination switch
reading function.
HEAD LAMP SW 1
[Off/On]
Displays the status of the HEADLAMP 1 switch in combination switch judged by BCM with the combination
switch reading function.
HEAD LAMP SW 2
[Off/On]
Displays the status of the HEADLAMP 2 switch in combination switch judged by BCM with the combination
switch reading function.
TAIL LAMP SW
[Off/On]
Displays the status of the TAIL LAMP switch in combination switch judged by BCM with the combination
switch reading function.
PASSING SW
[Off/On]
Displays the status of the PASSING switch in combination switch judged by BCM with the combination switch
reading function.
BCS-27
N
O
P
DIAGNOSIS SYSTEM (BCM)
< FUNCTION DIAGNOSIS >
Monitor item [UNIT]
Description
AUTO LIGHT SW
[Off/On]
Displays the status of the AUTO LIGHT switch in combination switch judged by BCM with the combination
switch reading function.
FR FOG SW
[Off/On]
Displays the status of the FR FOG switch in combination switch judged by BCM with the combination switch
reading function.
RR FOG SW
[Off/On]
Displays the status of the RR FOG switch in combination switch judged by BCM with the combination switch
reading function.
FR WIPER HI
[Off/On]
Displays the status of the FR WIPER HI switch in combination switch judged by BCM with the combination
switch reading function.
FR WIPER LOW
[Off/On]
Displays the status of the FR WIPER LOW switch in combination switch judged by BCM with the combination
switch reading function.
FR WIPER INT
[Off/On]
Displays the status of the FR WIPER INT switch in combination switch judged by BCM with the combination
switch reading function.
FR WASHER SW
[Off/On]
Displays the status of the FR WASHER switch in combination switch judged by BCM with the combination
switch reading function.
INT VOLUME
[1 - 7]
Displays the status of wiper intermittent dial position judged by BCM with the combination switch reading
function.
RR WIPER ON
[Off/On]
Displays the status of the RR WIPER switch in combination switch judged by BCM with the combination
switch reading function.
RR WIPER INT
[Off/On]
Displays the status of the RR WIPER INT switch in combination switch judged by BCM with the combination
switch reading function.
RR WASHER SW
[Off/On]
Displays the status of the RR WASHER switch in combination switch judged by BCM with the combination
switch reading function.
IMMU
IMMU : CONSULT-III Function (BCM - IMMU)
INFOID:0000000001189883
APPLICATION ITEM
CONSULT-III performs the following functions via CAN communication with BCM.
Diagnosis mode
Function Description
DATA MONITOR
The BCM input/output signals are displayed.
ACTIVE TEST
The signals used to activate each device are forcibly supplied from Intelligent Key unit.
DATA MONITOR
Monitor item
*1:
Content
IGN ON SW
Indicates [ON/OFF] condition of ignition switch in ON position.
KEY ON SW
Indicates [ON/OFF] condition of key switch.
PUSH SW*1
Indicates [ON/OFF] condition of ignition knob switch.
For the vehicle Intelligent key is equipped.
ACTIVE TEST
Test item
THEFT IND
Description
This test is able to check security indicator operation [ON/OFF].
BATTERY SAVER
BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)
WORK SUPPORT
BCS-28
INFOID:0000000001542947
DIAGNOSIS SYSTEM (BCM)
< FUNCTION DIAGNOSIS >
Service item
Setting item
ROOM LAMP TIMER SET
Setting
MODE 1*
30 min.
MODE 2
60 min.
A
Sets the interior room lamp battery saver timer operating
time.
B
*: Initial setting
DATA MONITOR
C
Monitor item
[Unit]
Description
IGN ON SW
[On/Off]
Ignition switch (ON) status judges from IGN signal (ignition power supply)
ACC SW
[On/Off]
Ignition switch (ACC) status judges from ACC signal (ACC power supply)
KEY ON SW
[On/Off]
The switch status input from key switch
PUSH SW
[On/Off]
Push switch status received from Intelligent Key unit by CAN communication
DOOR SW-DR
[On/Off]
The switch status input from front door switch (driver side)
DOOR SW-AS
[On/Off]
The switch status input from front door switch (passenger side)
DOOR SW-RR
[On/Off]
The switch status input from rear door switch RH
DOOR SW- RL
[On/Off]
The switch status input from rear door switch LH
BACK DOOR SW
[On/Off]
The switch status input from back door switch
CDL LOCK SW
[On/Off]
Lock switch status input from door lock and unlock switch
CDL UNLOCK SW
[On/Off]
Unlock switch status input from door lock and unlock switch
I-KEY LOCK
[On/Off]
Lock signal status received from Intelligent Key unit by CAN communication
I-KEY UNLOCK
[On/Off]
Unlock signal status received from Intelligent Key unit by CAN communication
KEYLESS LOCK
[On/Off]
Lock signal status received from remote keyless entry receiver (integrated in the
BCM)
KEYLESS UNLOCK
[On/Off]
Unlock signal status received from remote keyless entry receiver (integrated in the
BCM)
E
F
G
H
I
J
K
ACTIVE TEST
Test item
D
L
BCS
N
Operation
BATTERY SAVER
Description
Off
Cuts the interior room lamp power supply to turn interior room lamps OFF.
On
Outputs the interior room lamp power supply to turn interior room lamps ON.*
O
*: Each lamp switch is in ON position.
TRUNK
P
TRUNK : CONSULT-III Function (BCM - TRUNK)
DATA MONITOR
BCS-29
INFOID:0000000001189885
DIAGNOSIS SYSTEM (BCM)
< FUNCTION DIAGNOSIS >
Monitor Item
IGN ON SW
Indicates [ON/OFF] condition of ignition switch in ON position.
KEY ON SW
Indicates [ON/OFF] condition of key switch.
*1
*1
Condition
PUSH SW
Indicates [ON/OFF] condition of ignition knob switch.
TRNK OPNR SW
Indicates [ON/OFF] condition of back door opener switch.
VEHICLE SPEED
Displays the vehicle speed signal received from combination meter by numerical value
[km/h].
: For the Intelligent key equipped vehicle.
*2:
For the remote keyless entry system equipped vehicle.
ACTIVE TEST
Test item
TRUNK/GLASS HATCH
Description
This test is able to check back door opener operation [ON/OFF].
THEFT ALM
THEFT ALM : CONSULT-III Function (BCM - THEFT ALM)
APPLICATION ITEM
CONSULT-III performs the following functions via CAN communication with BCM.
Diagnosis mode
Function Description
WORK SUPPORT
Changes the setting for each system function.
DATA MONITOR
The BCM input/output signals are displayed.
ACTIVE TEST
The signals used to activate each device are forcibly supplied from BCM.
DATA MONITOR
Monitor Item
Condition
IGN ON SW
Indicates [ON/OFF] condition of ignition switch in ON position.
ACC ON SW
Indicates [ON/OFF] condition of ignition switch in ACC position.
PUSH SW*1
Indicates [ON/OFF] condition of ignition knob switch.
KEY ON SW
Indicates [ON/OFF] condition of key switch.
*2
KEYKESS LOCK
Indicates [ON/OFF] condition of lock signal from key fob.
KEYLESS UNLOCK*2
Indicates [ON/OFF] condition of unlock signal from key fob.
I-KEY LOCK*1
Indicates [ON/OFF] condition of lock signal from Intelligent Key.
I-KEY UNLOCK
*1
Indicates [ON/OFF] condition of unlock signal from Intelligent Key.
HOOD SW
Indicates [ON/OFF] condition of hood switch.
DOOR SW-DR
Indicates [ON/OFF] condition of front door switch (driver side).
DOOR SW-AS
Indicates [ON/OFF] condition of front door switch (passenger side).
DOOR SW-RR
Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL
Indicates [ON/OFF] condition of rear door switch LH.
BACK DOOR SW
Indicates [ON/OFF] condition of back door switch.
CDL LOCK SW
Indicates [ON/OFF] condition of door lock and unlock switch.
CDL UNLOCK SW
Indicates [ON/OFF] condition of door lock and unlock switch.
*1
: For vehicle equipped with Intelligent Key.
*2
: For the vehicle equipped with remote key less entry system.
BCS-30
INFOID:0000000001189886
DIAGNOSIS SYSTEM (BCM)
< FUNCTION DIAGNOSIS >
ACTIVE TEST
A
Test item
Description
THEFT IND
This test is able to check security indicator operation [ON/OFF].
VEHICLE SECURITY HORN
This test is able to check horn operation [ON].
FLASHER
This test is able to check flasher operation [LH/RH/OFF].
B
C
WORK SUPPORT
Test item
Description
D
SECURITY ALARM SET
Vehicle security function mode can be changed in this mode.
• ON: Vehicle security function is ON.
• OFF: Vehicle security function is OFF.
THEFT ALM TRG
The switch which triggered vehicle security system is recorded. This mode can be able to confirm and erase the record of vehicle security system.
E
SIGNAL BUFFER
F
SIGNAL BUFFER : CONSULT-III Function (BCM - SIGNAL BUFFER)
INFOID:0000000001189887
DATA MONITOR
G
Monitor item [UNIT]
Description
OIL PRESS SW
[Off/On]
Displays the status of oil pressure switch received from IPDM E/R via CAN communication.
BRAKE SW
[Off/On]
Displays the status of stop lamp switch.
H
I
ACTIVE TEST
Test item
OIL PRESSURE SW
Operation
J
Description
Off
Stops the oil pressure switch signal transmission.
On
BCM transmits the oil pressure switch signal to the combination meter via CAN communication, which illuminates the oil pressure warning lamp in the combination meter.
K
PTC HEATER
PTC HEATER : CONSULT-III Function (BCM - PTC HEATER)
L
INFOID:0000000001542948
DATA MONITOR
BCS
Display Item List
Monitor Item
[Unit]
ELEC PWR CUT
[OFF/FREEZ/INHBT]
FAN ON SIG
[On/Off]
ENGINE STATUS
[STOP/STAL/RUN/CRA]
Description
N
Displays [OFF/FREEZ/INHBT] condition of the PTC heater states.
O
Displays [FAN (ON)/FAN (OFF)] status as judged from blower fan motor signal.
Displays [STOP/STALL/RUN/CRA] condition of the engine states.
ENG COOLNT T
[°C]
The engine coolant temperature (determined by the signal voltage of the engine coolant temperature sensor) is displayed.
BATTERY VOLT
[V]
The power supply voltage of BCM is displayed.
BCS-31
P
DIAGNOSIS SYSTEM (BCM)
< FUNCTION DIAGNOSIS >
Monitor Item
[Unit]
Description
ENGINE RPM
[rpm]
Indicates the engine speed computed from the signal of the crankshaft position sensor.
OUTSIDE TEMP
[°C]
The outside air temperature (determined by the signal voltage of the OAT sensor) is displayed.
ACTIVE TEST
Test item
Test Item
Operation
PTC HEATER
OFF
PTC 1
PTC 2
PTC 3
Description
This test is able to check PTC heater operation.
BCS-32
U1000 CAN COMM CIRCUIT
< COMPONENT DIAGNOSIS >
COMPONENT DIAGNOSIS
A
U1000 CAN COMM CIRCUIT
Description
INFOID:0000000001189889
CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle multiplex communication line with high data communication speed and excellent error detection ability. Modern
vehicle is equipped with many electronic control unit, and each control unit shares information and links with
other control units during operation (not independent). In CAN communication, control units are connected
with 2 communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less
wiring. Each control unit transmits/receives data but selectively reads required data only.
CAN Communication Signal Chart. Refer to LAN-28, "CAN Communication Signal Chart".
DTC Logic
B
C
D
INFOID:0000000001189890
E
DTC DETECTION LOGIC
DTC
U1000
CONSULT-III display
description
CAN COMM CIRCUIT
DTC Detection Condition
F
Possible cause
Any item (or items) of the following listed below is
malfunctioning in CAN communication system.
• Transmission
When BCM cannot communicate CAN com- • Receiving (ECM)
• Receiving (METER/M&A)
munication signal continuously for 2 sec• Receiving (TCM)
onds or more.
• Receiving (MULTI AV)
• Receiving (IPDM E/R)
• Receiving (I-KEY)
Diagnosis Procedure
G
H
I
INFOID:0000000001189891
1.PERFORM SELF DIAGNOSTIC
J
1. Turn ignition switch ON and wait for 2 seconds or more.
2. Check “Self Diagnostic Result” of BCM.
Is “CAN COMM CIRCUIT” displayed?
YES >> Refer to LAN-13, "Trouble Diagnosis Flow Chart".
NO
>> Refer to GI-39, "Intermittent Incident".
K
L
BCS
N
O
P
BCS-33
U1010 CONTROL UNIT (CAN)
< COMPONENT DIAGNOSIS >
U1010 CONTROL UNIT (CAN)
DTC Logic
INFOID:0000000001189892
DTC DETECTION LOGIC
DTC
CONSULT-III display description
DTC Detection Condition
U1010
CONTROL UNIT (CAN)
When detecting error during the initial diagnosis of CAN controller of BCM.
Diagnosis Procedure
Possible cause
BCM
INFOID:0000000001189893
1.REPLACE BCM
When “DTC:U1010” is detected, replace BCM.
>> Replace BCM. Refer to BCS-65, "Exploded View".
Special Repair Requirement
INFOID:0000000001189894
1.ADDITIONAL SERVICE WHEN REPLACING BCM
>> Refer to BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description".
BCS-34
POWER SUPPLY AND GROUND CIRCUIT
< COMPONENT DIAGNOSIS >
POWER SUPPLY AND GROUND CIRCUIT
A
Diagnosis Procedure
INFOID:0000000001189895
1.CHECK FUSES AND FUSIBLE LINK
B
Check that the following fuses and fusible link are not fusing.
Terminal No.
Signal name
41
Battery power supply
57
Fuses and fusible link No.
C
9
J
37
ACC power supply
5
38
Ignition power supply
4
Is the fuse fusing?
YES >> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse or fusible link is
blown.
NO
>> GO TO 2.
D
E
F
2.CHECK POWER SUPPLY CIRCUIT
1.
2.
3.
Turn ignition switch OFF.
Disconnect BCM connectors.
Check voltage between BCM harness connector and ground.
G
H
Terminals
Ignition switch position
(+)
BCM
Connector
(−)
Terminal
37
M65
38
M66
41
M67
57
Ground
OFF
ACC
ON
Approx.
0V
Battery
voltage
Battery
voltage
Approx.
0V
Approx.
0V
Battery
voltage
Battery
voltage
Battery
voltage
Battery
voltage
Is the measurement value normal?
YES >> GO TO 3.
NO
>> Repair harness or connector.
I
J
K
L
3.CHECK GROUND CIRCUIT
BCS
Check continuity between BCM harness connector and ground.
N
BCM
Connector
Terminal
M67
55
Ground
Continuity
Existed
Does continuity exist?
YES >> INSPECTION END
NO
>> Repair harness or connector.
O
P
BCS-35
COMBINATION SWITCH INPUT CIRCUIT
< COMPONENT DIAGNOSIS >
COMBINATION SWITCH INPUT CIRCUIT
Diagnosis Procedure
INFOID:0000000001189896
1.CHECK INPUT 1 - 5 SYSTEM CIRCUIT FOR OPEN
1.
2.
3.
Turn ignition switch OFF.
Disconnect BCM and combination switch connectors.
Check continuity between BCM harness connector and combination switch harness connector.
System
BCM
Connector
Combination switch
Terminal
Connector
Terminal
INPUT 1
33
1
INPUT 2
32
2
INPUT 3
M65
35
M27
3
INPUT 4
34
4
INPUT 5
31
5
Continuity
Existed
Does continuity exist?
YES >> GO TO 2.
NO
>> Repair harnesses or connectors.
2.CHECK INPUT 1 - 5 SYSTEM CIRCUIT FOR SHORT
Check for continuity between BCM harness connector and ground.
System
BCM
Connector
INPUT 1
33
INPUT 2
32
INPUT 3
M65
Continuity
Terminal
Ground
35
INPUT 4
34
INPUT 5
31
Not existed
Does continuity exist?
YES >> Repair harnesses or connectors.
NO
>> GO TO 3.
3.CHECK BCM OUTPUT VOLTAGE
1.
2.
Connect BCM connector.
Check voltage between BCM harness connector and ground.
Terminals
(+)
System
(−)
BCM
Connector
Terminal
INPUT 1
33
INPUT 2
32
INPUT 3
M65
Voltage
(Approx.)
35
INPUT 4
34
INPUT 5
31
Ground
Refer to BCS40, "Reference Value".
Is the measurement value normal?
YES >> GO TO 4.
NO
>> Replace BCM. Refer to BCS-65, "Exploded View".
BCS-36
COMBINATION SWITCH INPUT CIRCUIT
< COMPONENT DIAGNOSIS >
4.CHECK COMBINATION SWITCH
A
Check combination switch. Refer to BCS-39, "Description".
Is the check result normal?
YES >> Replace BCM. Refer to BCS-65, "Exploded View".
NO
>> Replace the combination switch (applicable parts).
Special Repair Requirement
B
INFOID:0000000001189897
C
1.ADDITIONAL SERVICE WHEN REPLACING BCM
D
>> Refer to BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description".
E
F
G
H
I
J
K
L
BCS
N
O
P
BCS-37
COMBINATION SWITCH OUTPUT CIRCUIT
< COMPONENT DIAGNOSIS >
COMBINATION SWITCH OUTPUT CIRCUIT
Diagnosis Procedure
INFOID:0000000001189898
1.CHECK OUTPUT 1 - 5 SYSTEM CIRCUIT FOR OPEN
1.
2.
3.
Turn ignition switch OFF.
Disconnect BCM and combination switch connectors.
Check continuity between BCM harness connector and combination switch harness connector.
BCM
System
Connector
Combination switch
Terminal
Connector
Terminal
OUTPUT 1
1
6
OUTPUT 2
4
7
OUTPUT 3
M65
3
M27
10
OUTPUT 4
2
9
OUTPUT 5
5
8
Continuity
Existed
Does continuity exist?
YES >> GO TO 2.
NO
>> Repair harnesses or connectors.
2.CHECK OUTPUT 1 - 5 SYSTEM CIRCUIT FOR SHORT
Check for continuity between BCM harness connector and ground.
System
BCM
Connector
OUTPUT 1
1
OUTPUT 2
4
OUTPUT 3
M65
Continuity
Terminal
Ground
3
OUTPUT 4
2
OUTPUT 5
5
Not existed
Does continuity exist?
YES >> Repair harnesses or connectors.
NO
>> GO TO 3.
3.CHECK COMBINATION SWITCH
Check combination switch. Refer to BCS-39, "Description".
Is the check result normal?
YES >> Replace BCM. Refer to BCS-65, "Exploded View".
NO
>> Replace combination switch (applicable parts).
Special Repair Requirement
INFOID:0000000001189899
1.ADDITIONAL SERVICE WHEN REPLACING BCM
>> Refer to BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description".
BCS-38
COMBINATION SWITCH
< COMPONENT DIAGNOSIS >
COMBINATION SWITCH
A
Description
INFOID:0000000001189900
COMBINATION SWITCH MATRIX
B
Combination switch consists of INPUT circuit and OUTPUT circuit.
Combination switch circuit
C
D
E
F
G
JPMIA0121GB
H
Combination switch INPUT-OUTPUT system list
System
OUTPUT 1
OUTPUT 2
OUTPUT 3
OUTPUT 4
OUTPUT 5
INPUT 1
—
FR WASHER
FR WIPER LOW
TURN LH
TURN RH
INPUT 2
FR WIPER HI
—
FR WIPER INT
PASSING
HEADLAMP 1
INPUT 3
INT VOLUME 1
RR WASHER
—
HEADLAMP 2
HI BEAM
INPUT 4
RR WIPER INT
INT VOLUME 3
AUTO LIGHT
—
TAIL LAMP
INPUT 5
INT VOLUME 2
RR WIPER
RR FOG
FR FOG
—
I
J
K
NOTE:
Headlamp has a dual system switch.
L
Diagnosis Procedure
INFOID:0000000001189901
1.CHECK LIGHT & TURN SIGNAL SWITCH
BCS
Check operation with normal light & turn signal switch installed.
Does it operate normally?
YES >> Replace light & turn signal switch.
NO
>> GO TO 2.
N
2.CHECK WIPER & WASHER SWITCH
Check operation with normal wiper & washer switch installed.
Does it operate normally?
YES >> Replace wiper & washer switch.
NO
>> GO TO 3.
3.CHECK SWITCH BASE (SPIRAL CABLE)
Check operation with normal switch base (spiral cable) installed.
Does it operate normally?
YES >> Replace switch base (spiral cable).
NO
>> Combination switch is normal.
BCS-39
O
P
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
ECU DIAGNOSIS
BCM (BODY CONTROL MODULE)
Reference Value
INFOID:0000000001189902
VALUES ON THE DIAGNOSIS TOOL
Monitor Item
ACC ON SW
AIR COND SW
AUT LIGHT SYS
AUTO LIGHT SW
AUTO RELOCK
BACK DOOR SW
BATTERY VOLT
NOTE:
Diesel engine models
only
BRAKE SW
CDL LOCK SW
CDL UNLOCK SW
DOOR SW-AS
DOOR SW-DR
DOOR SW-RL
DOOR SW-RR
Condition
Value/Status
Ignition switch OFF
Off
Ignition switch ACC or ON
On
A/C switch OFF
Off
A/C switch ON
On
Outside of the room is bright
Off
Outside of the room is dark
On
Lighting switch OFF
Off
Lighting switch AUTO
On
Auto lock function does not operate
Off
Auto lock function is operating
On
Back door closed
Off
Back door opened
On
Ignition switch ON
Approximately the same as power
supply voltage
Brake pedal is not depressed
Off
Brake pedal is depressed
On
Door lock/unlock switch does not operate
Off
Press door lock/unlock switch to the LOCK side
On
Door lock/unlock switch does not operate
Off
Press door lock/unlock switch to the UNLOCK side
On
Passenger door closed
Off
Passenger door opened
On
Driver door closed
Off
Driver door opened
On
Rear LH door closed
Off
Rear LH door opened
On
Rear RH door closed
Off
Rear RH door opened
On
BCS-40
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Monitor Item
ELEC PWR CUT
NOTE:
Diesel engine models
only
Condition
Engine running
Value/Status
A
Fan switch ON (when engine coolant is
cool)
NOTE:
Depending on the ambient temperature, battery voltage, etc.
Off
The current status maintained with the
signal from ECM received.
FREEZ
• Fan switch OFF
• Fan switch ON after engine warming
UP
NOTE:
Depending on the engine coolant
temperature, ambient temperature,
battery voltage, etc.
INHBT
B
C
E
ENG COOLNT T
NOTE:
Diesel engine models
only
Engine running
ENGINE RPM
NOTE:
Diesel engine models
only
Engine running
Approximately the same as tachometer reading
Engine stopped
Off
Engine running
On
ENGINE RUN
ENGINE STATUS
NOTE:
Diesel engine models
only
FAN ON SIG
FR FOG SW
FR WASHER SW
FR WIPER LOW
FR WIPER HI
FR WIPER INT
FR WIPER STOP
GLS BREAK SEN
HAZARD SW
HD LIGHT TIME
D
Approximately the same as water
temperature gauge reading
F
Engine stopped
STOP
While the engine stalls
STALL
Engine running
RUN
At engine cranking
CRA
Fan switch OFF
Off
Fan switch ON
On
Front fog lamp switch OFF
Off
Front fog lamp switch ON
On
Front washer switch OFF
Off
Front washer switch ON
On
Front wiper switch OFF
Off
Front wiper switch LO
On
Front wiper switch OFF
Off
Front wiper switch HI
On
Front wiper switch OFF
Off
Front wiper switch INT
On
Any position other than front wiper stop position
Off
Front wiper stop position
On
The vehicle without glass break sensor
On
The vehicle with glass break sensor
Off
When hazard switch is not pressed
Off
When hazard switch is pressed
On
—
BCS-41
Displays a setting time of the follow
me home function set by the work
support
G
H
I
J
K
L
BCS
N
O
P
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Monitor Item
HEAD LAMP SW 1
HEAD LAMP SW 2
HI BEAM SW
HOOD SW
H/L WASH SW
IGN ON SW
IGN SW CAN
INT VOLUME
I-KEY LOCK
I-KEY UNLOCK
KEY ON SW
KEYLESS LOCK
KEY LESS PANIC
KEYLESS UNLOCK
LIT-SEN FAIL
MEMORY 1
MEMORY 2
MEMORY 3
MEMORY 4
MEMORY 5
OIL PRESS SW
OUT SIDE TEMP
NOTE:
Diesel engine models
Condition
Value/Status
Lighting switch OFF
Off
Lighting switch 2ND
On
Lighting switch OFF
Off
Lighting switch 2ND
On
Lighting switch OFF
Off
Lighting switch HI
On
Close the hood
NOTE:
Vehicles without theft warning system are OFF-fixed
Off
Open the hood
On
NOTE:
The item is indicated, but not monitored
Off
Ignition switch OFF or ACC
Off
Ignition switch ON
On
Ignition switch OFF or ACC
Off
Ignition switch ON
On
Wiper intermittent dial is in a dial position 1 - 7
1-7
LOCK button of Intelligent Key is not pressed
Off
LOCK button of Intelligent Key is pressed
On
UNLOCK button of Intelligent Key is not pressed
Off
UNLOCK button of Intelligent Key is pressed
On
Mechanical key is removed from key cylinder
Off
Mechanical key is inserted to key cylinder
On
LOCK button of key fob is not pressed
Off
LOCK button of key fob is pressed
On
NOTE:
The item is indicated, but not monitored
Off
UNLOCK button of key fob is not pressed
Off
UNLOCK button of key fob is pressed
On
Light & rain sensor is in normal condition
OK
Light & rain sensor is with internal error
NOT OK
Key fob ID code is not registered in “Memory 1”
Off
Key fob ID code is registered in “Memory 1”
On
Key fob ID code is not registered in “Memory 2”
Off
Key fob ID code is registered in “Memory 2”
On
Key fob ID code is not registered in “Memory 3”
Off
Key fob ID code is registered in “Memory 3”
On
Key fob ID code is not registered in “Memory 4”
Off
Key fob ID code is registered in “Memory 4”
On
Key fob ID code is not registered in “Memory 5”
Off
Key fob ID code is registered in “Memory 5”
On
• Ignition switch OFF or ACC
• Engine running
Off
Ignition switch ON
On
Ignition switch ON
Approximately the same as outside
air temperature
BCS-42
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Monitor Item
PASSING SW
REVERSE SW CAN
PUSH SW
REAR DEF SW
RR FOG SW
RR WASHER SW
RR WIPER INT
RR WIPER ON
RR WIPER STOP
SHOCK SENSOR
Condition
Value/Status
Other than lighting switch PASS
Off
Lighting switch PASS
On
Except selector lever R position
Off
Selector lever R position
On
Return to ignition switch to LOCK position
Off
Press ignition switch
On
Rear window defogger switch OFF
Off
Rear window defogger switch ON
On
Rear fog lamp switch OFF
Off
Rear fog lamp switch ON
On
Rear washer switch OFF
Off
Rear washer switch ON
On
Rear wiper switch OFF
Off
Rear wiper switch INT
On
Rear wiper switch OFF
Off
Rear wiper switch ON
On
Rear wiper stop position
Off
Other than rear wiper stop position
On
Ignition switch ON
NOMAL
After the reception of air bag deployment signal from air bag diagnosis sensor unit
Off
During the reception of air bag deployment signal from air bag diagOn
nosis sensor unit
TAIL LAMP SW
TRNK OPNR SW
TURN SIGNAL L
TURN SIGNAL R
UNLOCK SHOCK
VEHICLE SPEED
Lighting switch OFF
Off
Lighting switch 1ST
On
When back door opener switch is not pressed
Off
When back door opener switch is pressed
On
Turn signal switch OFF
Off
Turn signal switch LH
On
Turn signal switch OFF
Off
Turn signal switch RH
On
Other than the following
Off
During the unlock operation interlocked with air bag
On
While driving
Equivalent to speedometer reading
A
B
C
D
E
F
G
H
I
J
K
L
BCS
N
O
P
BCS-43
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
TERMINAL LAYOUT
JPMIA0145GB
PHYSICAL VALUES
CAUTION:
• Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF is not to be fluctuated by being overloaded.
• Turn wiper intermittent dial position to 4 except when checking waveform or voltage of wiper intermittent dial position. Wiper intermittent dial position can be confirmed on CONSULT-III. Refer to
BCS-27, "COMB SW : CONSULT-III Function (BCM - COMB SW)".
• BCM reads the status of the combination switch at 10 ms internal normally. Refer to BCS-10, "System Description".
BCS-44
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Terminal No.
(Wire color)
+
−
Description
Signal name
All switch OFF
(Wiper intermittent dial 4)
A
Value
(Approx.)
Condition
Input/
Output
B
0V
Front wiper switch HI
(Wiper intermittent dial 4)
1
(P)
Ground
Combination switch
OUTPUT 1
Output
Combination
switch
C
Rear wiper switch INT
(Wiper intermittent dial 4)
Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 2
• Wiper intermittent dial 3
• Wiper intermittent dial 6
• Wiper intermittent dial 7
All switch OFF
D
JPMIA0160GB
E
9.1 V
0V
F
Lighting switch 2ND
2
(Y)
Ground
Combination switch
OUTPUT 4
Output
Combination
switch
(Wiper intermittent dial 4)
Lighting switch PASS
G
Front fog lamp switch ON
H
Turn signal switch LH
JPMIA0163GB
9.3 V
All switch OFF
0V
I
Lighting switch AUTO
3
(LG)
Ground
Combination switch
OUTPUT 3
Output
Combination
switch
(Wiper intermittent dial 4)
Rear fog lamp switch OFF
J
Front wiper switch MIST
Front wiper switch INT
K
Front wiper switch LO
JPMIA0162GB
9.3 V
All switch OFF
(Wiper intermittent dial 4)
L
0V
Front washer switch ON
(Wiper intermittent dial 4)
4
(R)
Ground
Combination switch
OUTPUT 2
Output
Combination
switch
BCS
Rear wiper switch ON
(Wiper intermittent dial 4)
N
Rear washer switch ON
(Wiper intermittent dial 4)
Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 5
• Wiper intermittent dial 6
JPMIA0161GB
O
9.1 V
P
BCS-45
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Terminal No.
(Wire color)
+
−
Description
Signal name
Value
(Approx.)
Condition
Input/
Output
All switch OFF
0V
Lighting switch 1ST
5
(W)
Ground
Combination switch
OUTPUT 5
Output
Combination
switch
(Wiper intermittent dial 4)
Lighting switch 2ND
Lighting switch HI
Turn signal switch RH
JPMIA0164GB
9.1 V
7
(P)
Ground
Door lock/unlock
switch (Lock)
Input
Door lock/unlock switch
Not pressed
JPMIA0154GB
1.2 V
Pressed to the lock side
8
(LG)
Ground
Hazard switch
Input
Hazard switch
0V
Not pressed
JPMIA0154GB
1.3 V
Pressed
9
(BR)
Ground
Door lock/unlock
switch (Unlock)
Input
Door lock/unlock switch
0V
Not pressed
JPMIA0154GB
1.2 V
Pressed to the unlock side 0 V
12
(P)
Ground
Back door opener
switch
Input
Back door
opener switch
Not pressed
JPMIA0154GB
1.2 V
Pressed
BCS-46
0V
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Terminal No.
(Wire color)
+
−
Description
Signal name
Ignition switch OFF or ACC
13
(R)
Ground
Shock detect sensor
Input
Value
(Approx.)
Condition
Input/
Output
A
0V
B
C
Ignition switch ON
D
JPMIA0155GB
6.0 V
14
(L/R)
Ground
A/C switch
Input
A/C switch
15
(LG/B)
Ground
Fan switch
Input
Fan switch
16
(GR)
Ground
Alarm link
Output
Not pressed
Battery voltage
Pressed
0V
Not pressed
Battery voltage
Pressed
0V
F
—
Ignition switch OFF or ACC
E
—
G
Battery voltage
H
17
(BR)
Ground
Light & rain sensor
serial link
Input/
Output
Ignition switch ON
I
JPMIA0156GB
8.7 V
ON
J
0V
K
18
(SB)
Ground
Security indicator
Output
Security indicator
Blinking
L
JPMIA0014GB
10.3 V
OFF
BCS
Battery voltage
19
(L)
—
CAN-H
Input/
Output
—
—
20
(P)
—
CAN-L
Input/
Output
—
—
N
O
21
(SB)
Ground
Rear window defogger switch
Input
Rear window
defogger switch
Not pressed
P
JPMIA0154GB
1.1 V
While pressing
BCS-47
0V
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Terminal No.
(Wire color)
+
−
24
(GR)
Ground
25
(GR)
Ground
Description
Signal name
Input/
Output
Door lock status indicator
Output
Rear door switch LH
Input
Value
(Approx.)
Condition
Door lock status
indicator
Rear door
switch LH
ON
Battery voltage
OFF
0V
OFF (When rear door LH
closed)
PKID0924E
11.2 V
ON (When rear door LH
opened)
26
(R)
Ground
Driver door switch
Input
Driver door
switch
0V
OFF (When driver door
closed)
PKID0924E
11.2 V
ON (When driver door
opened)
27
(BR)
Ground
Passenger door
switch
Input
Passenger door
switch
0V
OFF (When passenger
door closed)
PKID0924E
11.2 V
28
(G)
29
(LG)
Ground
Ground
Back door switch
Rear door switch RH
Input
Input
Back door
switch
Rear door
switch RH
ON (When passenger
door opened)
0V
OFF (When back door
closed)
Battery voltage
ON (When back door
opened)
0V
OFF (When rear door RH
closed)
PKID0924E
11.2 V
ON (When rear door RH
opened)
30
(SB)
Ground
Audio link
Input/
Output
—
BCS-48
—
0V
—
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Terminal No.
(Wire color)
+
−
Description
Signal name
Condition
Input/
Output
Value
(Approx.)
A
B
All switch OFF
(Wiper intermittent dial 4)
C
JPMIA0165GB
1.3 V
D
E
Front fog lamp switch ON
(Wiper intermittent dial 4)
F
JPMIA0167GB
1.3 V
G
31
(BR)
Ground
Combination switch
INPUT 5
Input
Combination
switch
H
Rear fog lamp switch ON
(Wiper intermittent dial 4)
JPMIA0168GB
I
1.3 V
J
Rear wiper switch ON
(Wiper intermittent dial 4)
K
JPMIA0169GB
L
1.3 V
Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 2
• Wiper intermittent dial 6
• Wiper intermittent dial 7
BCS
N
JPMIA0196GB
1.3 V
O
P
BCS-49
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Terminal No.
(Wire color)
+
−
Description
Signal name
Condition
Input/
Output
Value
(Approx.)
All switch OFF
JPMIA0165GB
1.4 V
Lighting switch PASS
JPMIA0167GB
1.3 V
32
(G)
Ground
Combination switch
INPUT 2
Input
Combination
switch
(Wiper intermittent dial 4)
Lighting switch 2ND
JPMIA0166GB
1.3 V
Front wiper switch INT
JPMIA0168GB
1.3 V
Front wiper switch HI
JPMIA0196GB
1.3 V
BCS-50
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Terminal No.
(Wire color)
+
−
Description
Signal name
Condition
Input/
Output
Value
(Approx.)
A
B
All switch OFF
C
JPMIA0165GB
1.4 V
D
E
Turn signal switch LH
F
JPMIA0167GB
1.3 V
G
33
(V)
Ground
Combination switch
INPUT 1
Input
Combination
switch
(Wiper intermittent dial 4)
H
Turn signal switch RH
JPMIA0166GB
I
1.3 V
J
Front wiper switch LO
K
JPMIA0168GB
L
1.3 V
BCS
Front washer switch ON
N
JPMIA0196GB
1.3 V
O
P
BCS-51
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Terminal No.
(Wire color)
+
−
Description
Signal name
Condition
Input/
Output
Value
(Approx.)
All switch OFF
(Wiper intermittent dial 4)
JPMIA0165GB
1.4 V
Lighting switch AUTO
(Wiper intermittent dial 4)
JPMIA0167GB
1.3 V
34
(GR)
Ground
Combination switch
INPUT 4
Input
Combination
switch
Lighting switch 1ST
(Wiper intermittent dial 4)
JPMIA0166GB
1.3 V
Rear wiper INT
(Wiper intermittent dial 4)
JPMIA0167GB
1.3 V
Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 6
JPMIA0196GB
1.3 V
BCS-52
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Terminal No.
(Wire color)
+
−
Description
Signal name
Value
(Approx.)
Condition
Input/
Output
A
B
All switch OFF
(Wiper intermittent dial 4)
C
JPMIA0165GB
1.4 V
D
E
Lighting switch HI
(Wiper intermittent dial 4)
F
JPMIA0166GB
1.3 V
G
35
(L)
Ground
Combination switch
INPUT 3
Input
Combination
switch
H
Lighting switch 2ND
(Wiper intermittent dial 4)
JPMIA0167GB
I
1.3 V
J
Rear wiper switch ON
K
JPMIA0169GB
L
1.3 V
BCS
Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 2
• Wiper intermittent dial 3
N
JPMIA0196GB
1.3 V
36
(V)
Ground
Key switch
Input
37
(R)
Ground
ACC power supply
Input
38
(W)
Ground
Ignition power supply
Input
Insert mechanical key into ignition key cylinder
Battery voltage
Remove mechanical key from ignition key
cylinder
0V
Ignition switch OFF
0V
Ignition switch ACC or ON
Battery voltage
Ignition switch OFF or ACC
0V
Ignition switch ON
Battery voltage
BCS-53
O
P
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Terminal No.
(Wire color)
Description
Input/
Output
Condition
Value
(Approx.)
+
−
Signal name
39
(P)
Ground
NATS antenna amp.
Input/
Output
Insert mechanical key into ignition key cylinder
Just after Insert mechanical key
into ignition key cylinder. Pointer
of tester should move
40
(LG)
Ground
NATS antenna amp.
Input/
Output
Insert mechanical key into ignition key cylinder
Just after Insert mechanical key
into ignition key cylinder. Pointer
of tester should move
41
(V)
Ground
Battery power supply
Input
Ignition switch OFF
Battery voltage
42
(V)
Output
After passing the interior room lamp battery
saver operation time
0V
Ground
Interior room lamp
power supply
Any other time after passing the interior room
lamp battery saver operation time
Battery voltage
43
(L)
Ground
Rear wiper motor
Output
Rear wiper switch OFF
0V
Rear wiper switch ON
Battery voltage
Rear wiper stop position
44
(L/W)
Ground
Rear wiper auto stop
Input
Ignition switch
ON
0V
Any position other than
rear wiper stop position
JPMIA0197GB
45
(GR)
47
(G/Y)
Ground
Ground
Back door lock actuator
Turn signal LH
Output
Output
Back door
opener switch
Ignition switch
ON
Pressed
Battery voltage (300ms)
Not pressed
0V
Turn signal switch OFF
0V
Turn signal switch LH
PKID0926E
6.5 V
Turn signal switch OFF
48
(G/B)
Ground
Turn signal RH
Output
Ignition switch
ON
0V
Turn signal switch RH
PKID0926E
6.5 V
49
(Y)
Ground
Rear fog lamp
Ground
Stop lamp switch
Output
51
(R/W)*1
(R)*2
Input
Lighting switch
1ST and front
fog lamp switch
ON
Rear fog lamp switch OFF 0 V
Rear fog lamp switch ON
Battery voltage
Depress the brake pedal
Battery voltage
Release the brake pedal
0V
BCS-54
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Terminal No.
(Wire color)
Description
Signal name
Input/
Output
Value
(Approx.)
Condition
+
−
52
(R)
Ground
Room lamp timer
control
Output
Interior room
lamp
53
(L)
Ground
Power window power supply
Output
Ignition switch
54
(O)
Ground
Door unlock (All)
Output
55
(B)
Ground
Ground
Ground
Door lock (All)
57
(Y)
Ground
Battery power supply
Input
Ignition switch OFF
Battery voltage
58
(P)
Ground
Power window power supply
Output
Ignition switch OFF
Battery voltage
When lock button of key fob or Intelligent Key
is not pressed
0V
When lock button of key fob or Intelligent Key
is pressed
Battery voltage
Pressed to the unlock side
Battery voltage
Pressed to the lock side
0V
Output
(SB)*2
59
(BR)
60
(GR)
Battery voltage
ON
0V
OFF or ACC
0V
ON
Battery voltage
Pressed to the unlock side
Battery voltage
Pressed to the lock side
0V
B
C
D
—
56
(Y)*1
Door lock/unlock switch
OFF
A
Ground
Ground
Super lock
Driver door unlock
Output
Output
Ignition switch ON
Door lock/unlock switch
Door lock/unlock switch
0V
Pressed to the unlock side
0V
Pressed to the lock side
Battery voltage
E
F
G
H
I
*1: With Intelligent Key system
*2: Without Intelligent Key system
J
K
L
BCS
N
O
P
BCS-55
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Wiring Diagram - BCM -
INFOID:0000000001189903
JCMWA0664GB
BCS-56
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
A
B
C
D
E
F
G
H
I
J
K
L
BCS
N
O
JCMWA0665GB
P
BCS-57
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
JCMWA0666GB
BCS-58
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
A
B
C
D
E
F
G
H
I
J
K
L
BCS
N
O
JCMWA0667GB
P
BCS-59
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
JCMWA0668GB
Fail Safe
INFOID:0000000001189904
Fail-safe index
BCM performs fail-safe control when any DTC listed below is detected.
BCS-60
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
Display contents of CONSULT
Fail-safe
Cancellation
B2190: NATS ANTENNA AMP
• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel cut (ECM)
Erase DTC
B2191: DIFFERENCE OF KEY
• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel cut (ECM)
Erase DTC
B2192: ID DISCORD BCM-ECM
Fuel cut (ECM)
Erase DTC
B2193: CHAIN OF BCM-ECM
Fuel cut (ECM)
Erase DTC
B2194: DISCORD BCM-I-KEY
• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel cut (ECM)
Erase DTC
B2195: ANTI SCANNING
• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel cut (ECM)
Erase DTC
B2196: DONGLE NG
• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel cut (ECM)
Erase DTC
A
B
C
D
REAR WIPER CONTROL
BCM detects a rear wiper stopping position according to a rear wiper auto stop signal.
When a rear wiper auto stop signal is in the condition listed below, BCM stops power supply to rear wiper after
rear wiper is activated for five seconds.
E
F
G
H
Ignition switch
Rear wiper switch
Rear wiper auto stop signal
OFF
The rear wiper auto stop signal (stop position) cannot be input for 5 seconds.
ON
The rear wiper auto stop signal does not
change for 5 seconds.
ON
I
NOTE:
The above operation is repeated when operating the rear wiper switch one minute after the stop of the rear
wiper caused by Fail-safe.
J
TURN SIGNAL LAMP CONTROL
K
BCM detects the turn signal lamp circuit status from the terminal voltage.
BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn signal
lamp operating.
NOTE:
The blinking speed is normal while activating the hazard warning lamp.
L
LIGHT & RAIN SENSOR MALFUNCTION DETECTION FUNCTION
BCS
BCM controls the following items when LIGHT & RAIN sensor has a malfunction.
Auto Light Control
Headlamp is turned ON.
N
Front Wiper Control
The condition just before the activation of Fail-safe is maintained until the front wiper switch is turned OFF.
O
P
BCS-61
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
DTC Inspection Priority Chart
INFOID:0000000001189905
Priority
DTC
1
• U1000: CAN COMM CIRCUIT
• U1010: CONTROL UNIT (CAN)
2
•
•
•
•
•
•
•
B2190: NATS ANTENNA AMP
B2191: DIFFERNCE OF KEY
B2192: ID DISCORD BCM-ECM
B2193: CHAIN OF BCM-ECM
B2194: DISCORD BCM-I-KEY
B2195: ANTI SCANNING
B2196: DONGLE NG
DTC Index
INFOID:0000000001189906
NOTE:
Details of time display
• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning ignition switch OFF → ON again.
• PAST: Displays when there is a malfunction that is detected in the past and stored.
• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1
→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter
remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF → ON after returning to the normal condition if the malfunction is detected again.
CONSULT display
TIME
Fail-safe
Refer to
—
No DTC is detected.
further testing
may be required.
—
—
—
U1000: CAN COMM CIRCUIT
0
1 - 39
—
BCS-33
U1010: CONTROL UNIT (CAN)
0
1 - 39
—
BCS-34
B2190: NATS ANTENNA AMP
CRNT
PAST
×
• With Intelligent Key system SEC-45
• Without Intelligent Key system SEC194
B2191: DIFFERENCE OF KEY
CRNT
PAST
×
• With Intelligent Key system SEC-47
• Without Intelligent Key system SEC196
B2192: ID DISCORD BCM-ECM
CRNT
PAST
×
• With Intelligent Key system SEC-48
• Without Intelligent Key system SEC197
B2193: CHAIN OF BCM-ECM
CRNT
PAST
×
• With Intelligent Key system SEC-50
• Without Intelligent Key system SEC199
B2194: DISCORD BCM-I-KEY
CRNT
PAST
×
SEC-51
B2195: ANTI SCANNING
CRNT
PAST
×
• With Intelligent Key system SEC-52
• Without Intelligent Key system SEC200
B2196: DONGLE NG
CRNT
PAST
×
• With Intelligent Key system SEC-53
• Without Intelligent Key system SEC201
BCS-62
PRECAUTIONS
< PRECAUTION >
PRECAUTION
A
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
B
INFOID:0000000001189907
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.
• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors.
C
D
E
F
G
H
I
J
K
L
BCS
N
O
P
BCS-63
COMBINATION SWITCH SYSTEM SYMPTOMS
< SYMPTOM DIAGNOSIS >
SYMPTOM DIAGNOSIS
COMBINATION SWITCH SYSTEM SYMPTOMS
Symptom Table
1.
2.
INFOID:0000000001189908
Perform “Data Monitor” of CONSULT-III to check for any malfunctioning item.
Check the malfunction combinations.
Malfunction item: ×
×
×
×
×
×
×
3.
×
×
×
×
×
RR WASHER SW
×
×
×
×
×
C
D
×
×
×
×
RR WIPER INT
B
×
×
RR WIPER ON
×
×
×
×
A
×
×
Malfunction combination
×
×
×
INT VOLUME
FR WASHER SW
FR WIPER INT
FR WIPER LOW
FR WIPER HI
RR FOG SW
FR FOG SW
AUTO LIGHT SW
PASSING SW
TAIL LAMP SW
HEAD LAMP SW 2
×
HEAD LAMP SW 1
TURN SIGNAL L
×
HI BEAM SW
TURN SIGNAL R
Data monitor item
E
×
×
×
×
F
G
H
×
I
×
J
Combinations other than those above
K
All Items
L
If only one item is detected or the item is not applicable to the combinations A to L
M
Identify the malfunctioning part from the agreed combination and repair or replace the part.
Malfunction
combination
Malfunctioning part
Repair or replace
A
Combination switch INPUT 1 circuit
B
Combination switch INPUT 2 circuit
C
Combination switch INPUT 3 circuit
D
Combination switch INPUT 4 circuit
E
Combination switch INPUT 5 circuit
F
Combination switch OUTPUT 1 circuit
G
Combination switch OUTPUT 2 circuit
H
Combination switch OUTPUT 3 circuit
I
Combination switch OUTPUT 4 circuit
J
Combination switch OUTPUT 5 circuit
K
Light & turn signal switch or wiper &
washer switch
Refer to BCS-39, "Description".
L
BCM
Replace BCM.
M
Light & turn signal switch or wiper &
washer switch
Replace the switch that cannot be operated.
Inspect the combination switch input circuit applicable to the malfunctioning
part. Refer to BCS-36, "Diagnosis Procedure".
Inspect the combination switch output circuit applicable to the malfunctioning part. Refer to BCS-38, "Diagnosis Procedure".
BCS-64
BCM (BODY CONTROL MODULE)
< ON-VEHICLE REPAIR >
ON-VEHICLE REPAIR
A
BCM (BODY CONTROL MODULE)
Exploded View
INFOID:0000000001189909
CAUTION:
Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specification. Refer to BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description".
B
C
D
E
F
G
JPMIA0205ZZ
1.
H
BCM
Removal and Installation
INFOID:0000000001189910
CAUTION:
Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specification. Refer to BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description".
I
J
REMOVAL
1.
2.
3.
4.
5.
Remove glove box assembly. Refer to IP-11, "Exploded View".
Disconnect 4WD control unit connector (if equipped).
Remove intake heater duct.
Remove mounting screws.
Remove BCM and disconnect the connector.
K
L
BCS
INSTALLATION
Install in the reverse order of removal.
CAUTION:
• Be sure to perform “WRITE CONFIGURATION” when replacing BCM.
• Be sure to perform the system initialization (NATS) when replacing BCM.
Refer to BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement".
N
O
P
BCS-65
COMBINATION SWITCH
< ON-VEHICLE REPAIR >
COMBINATION SWITCH
Exploded View
INFOID:0000000001189911
JPMIA0206ZZ
1.
Wiper & washer switch
2.
Switch base (Spiral cable)
Removal and Installation
3.
Light & turn signal switch
INFOID:0000000001189912
Refer to SR-6, "Exploded View".
BCS-66
Scarica
Random flashcards
geometria

2 Carte oauth2_google_01b16202-3071-4a8d-b161-089bede75cca

CRANIO

2 Carte oauth2_google_d7270607-b7ab-4128-8f55-c54db3df9ba1

Triangoli

2 Carte oauth2_google_d2543822-c1b0-4efc-972b-1e120768c5d0

il condizionale

2 Carte oauth2_google_2e587b98-d636-4423-a451-84f012b884f0

Verifica

2 Carte

creare flashcard
